RM36D0EC _52 Drivetrain _083068 GF2A TRANSFER / 4WD / AWD _0401882 DYNAMIC TORQUE VECTORING AWD SYSTEM C

GF2A TRANSFER / 4WD / AWD  DYNAMIC TORQUE VECTORING AWD SYSTEM  C13ED1C  4WD/AWD Ring Gear Revolution Sensor Circuit Voltage Out of Range


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Memory
C13ED1C 4WD/AWD Ring Gear Revolution Sensor Circuit Voltage Out of Range
·

The open or short in the transmission revolution sensor signal circuit continues for 1 second or more

·

The transmission revolution sensor power source voltage malfunction continues for 1 second or more


·

Wire harness or connector

·

Transmission revolution sensor

·

4WD ECU assembly


Displayed Yes

DTC Detection Conditions: C13ED1C
Vehicle Condition
Pattern 1 Pattern 2 Pattern 2
Diagnosis Condition - - - -
- - - -
Malfunction Status The open in the transmission revolution sensor signal circuit - -
The short in the transmission revolution sensor signal circuit - -
The transmission revolution sensor power source voltage malfunction - -
Detection Time 1 second or more 1 second or more 1 second or more
Number of Trips 1 trip 1 trip 1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

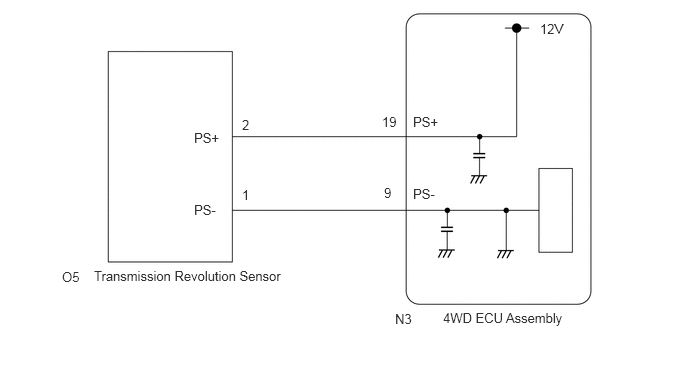

WIRING DIAGRAM

C408524E01
4.115,3.24 4.427,3.438 0.313,0.198 10 false N3 4.615,3.229 6.052,3.469 1.438,0.24 10 false 4WD ECU Assembly 0.646,2.802 0.958,3 0.313,0.198 10 false O5 0.979,2.792 2.979,3.125 2,0.333 10 false Transmission Revolution Sensor 2.021,1.354 2.375,1.552 0.354,0.198 10 false PS+ 2.021,2.104 2.375,2.302 0.354,0.198 10 false PS- 4.302,1.188 4.656,1.385 0.354,0.198 10 false PS+ 4.302,1.938 4.656,2.135 0.354,0.198 10 false PS- 2.521,1.219 2.875,1.417 0.354,0.198 10 false 2 2.521,1.948 2.875,2.146 0.354,0.198 10 false 1 3.979,1.188 4.396,1.417 0.417,0.229 10 false 19 4,1.927 4.417,2.156 0.417,0.229 10 false 9 5.625,0.219 5.979,0.417 0.354,0.198 10 false 12V

CAUTION / NOTICE / HINT

NOTICE:
·

When the 4WD ECU assembly is replaced, before removing the 4WD ECU assembly, it is necessary to perform ECU Data Save to save the original 4WD ECU assembly information.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>CALIBRATION

·

After performing repairs, clear the DTCs and check that the DTCs are not output again.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>DTC CHECK / CLEAR



PROCEDURE

1.INSPECT TRANSMISSION REVOLUTION SENSOR
a.

Turn the engine switch off.



c.

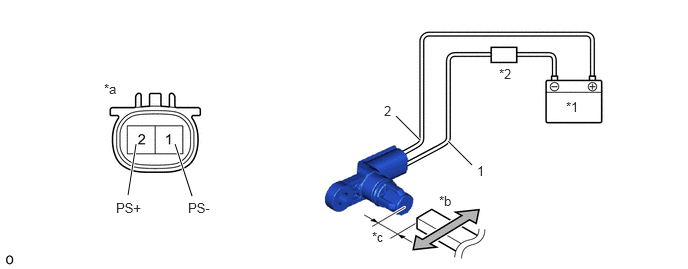

Connect the battery to the transmission revolution sensor as shown in the illustration.

C409822C01
1.333,2.031 1.417,1.5 true 2,2.042 1.823,1.5 true 4.125,1.208 4.375,1.458 true 4.667,1.469 4.917,1.719 true 5.896,1.031 6.208,1.188 0.313,0.156 10 false *1 5.198,0.688 5.51,0.844 0.313,0.156 10 false *2 1.083,0.844 1.396,1 0.313,0.156 10 false *a 4.573,2.01 4.885,2.167 0.313,0.156 10 false *b 3.875,2.385 4.188,2.542 0.313,0.156 10 false *c 1.208,2.083 1.667,2.281 0.458,0.198 10 false PS+ 1.958,2.083 2.417,2.281 0.458,0.198 10 false PS- 4,1.073 4.156,1.271 0.156,0.198 10 false 2 4.969,1.698 5.125,1.896 0.156,0.198 10 false 1
*1 Battery *2 Ammeter
*a Component without harness connected
(Transmission Revolution Sensor)
*b Magnet
*c 5 mm (0.197 in.) - -



d.

Wave a magnet left and right 5 mm (0.197 in.) or less from the tip of the transmission revolution sensor to output a high/low signal while measuring the current.

NOTICE:

Make sure to wave the magnet during the inspection. The current will not change unless the magnet is moved as shown in the illustration.



e.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (PS-) - 2 (PS+) Low signal (Move piece of metal closer) 6 mA
1 (PS-) - 2 (PS+) High signal (Move piece of metal away) 14 mA



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - TRANSMISSION REVOLUTION SENSOR)

NG

2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - TRANSMISSION REVOLUTION SENSOR)
a.

Turn the engine switch off.


b.

Disconnect the O5 transmission revolution sensor connector.


c.

Disconnect the N3 4WD ECU assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O5-2 (PS+) - N3-19 (PS+) Always Below 1 Ω
O5-1 (PS-) - N3-9 (PS-) Always Below 1 Ω
O5-2 (PS+) or N3-19 (PS+) - Body ground and other terminals Always 10 kΩ or higher
O5-1 (PS-) or N3-9 (PS-) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
