GF2A TRANSFER / 4WD / AWD  DYNAMIC TORQUE VECTORING AWD SYSTEM  C13E91C  4WD/AWD Left Range Actuator Control Circuit Performance Circuit Voltage Out of Range


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Memory
C13E91C 4WD/AWD Left Range Actuator Control Circuit Performance Circuit Voltage Out of Range
·

The IG1 terminal voltage is 9.5 V or higher, the command current of the rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) is 0 A and the short circuit continues for 1 second or more

·

The IG1 terminal voltage is 9.5 V or higher, the command current of the rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) is 0.8 A and the open circuit continues for 1 second or more


·

Wire harness or connector

·

Rear 4WD linear solenoid LH (Electro magnetic control coupling sub-assembly LH)

·

4WD ECU assembly


Displayed Yes

DTC Detection Conditions: C13E91C
Vehicle Condition
Pattern 1 Pattern 2
Diagnosis Condition The IG1 terminal voltage is 9.5 V or higher, the command current of the rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) is 0 A ○ -
The IG1 terminal voltage is 9.5 V or higher, the command current of the rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) is 0.8 A - ○
Malfunction Status Short circuit ○ -
Open circuit - ○
Detection Time 1 second or more 1 second or more
Number of Trips 1 trip 1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

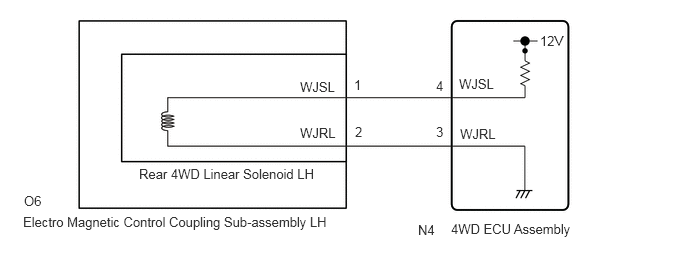

WIRING DIAGRAM

C408925E04
0.25,2.01 0.563,2.208 0.313,0.198 10 false O6 0.24,2.229 3.708,2.604 3.469,0.375 10 false Electro Magnetic Control Coupling Sub-assembly LH 4.698,2.302 6.292,2.594 1.594,0.292 10 false 4WD ECU Assembly 4.354,2.313 4.667,2.51 0.313,0.198 10 false N4 3.125,0.823 4.313,1.094 1.188,0.271 10 false WJSL 3.125,1.302 4.313,1.573 1.188,0.271 10 false WJRL 3.688,0.802 4,1 0.313,0.198 10 false 1 3.698,1.292 4.01,1.49 0.313,0.198 10 false 2 4.542,1.292 4.854,1.49 0.313,0.198 10 false 3 4.542,0.813 4.854,1.01 0.313,0.198 10 false 4 4.781,0.792 5.969,1.063 1.188,0.271 10 false WJSL 4.792,1.313 5.979,1.583 1.188,0.271 10 false WJRL 5.625,0.344 5.948,0.573 0.323,0.229 10 false 12V 1.448,1.729 3.417,2.031 1.969,0.302 10 false Rear 4WD Linear Solenoid LH

CAUTION / NOTICE / HINT

NOTICE:
·

When the 4WD ECU assembly is replaced, before removing the 4WD ECU assembly, it is necessary to perform ECU Data Save to save the original 4WD ECU assembly information.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>CALIBRATION

·

After performing repairs, clear the DTCs and check that the DTCs are not output again.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>DTC CHECK / CLEAR



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - REAR 4WD LINEAR SOLENOID LH (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH))
a.

Turn the engine switch off.


b.

Disconnect the N4 4WD ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N4-4 (WJSL) - N4-3 (WJRL) 20°C (68°F) 2.2 to 2.6 Ω
N4-4 (WJSL) - Body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N4-3 (WJRL) - Body ground Always Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE 4WD ECU ASSEMBLY

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL


NG

2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - REAR 4WD LINEAR SOLENOID LH (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH))
2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - REAR 4WD LINEAR SOLENOID LH (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH))
a.

Turn the engine switch off.


b.

Disconnect the O6 rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N4-4 (WJSL) - O6-1 (WJSL) Always Below 1 Ω
N4-3 (WJRL) - O6-2 (WJRL) Always Below 1 Ω
N4-4 (WJSL) or O6-1 (WJSL) - Body ground Always 10 kΩ or higher
N4-3 (WJRL) or O6-2 (WJRL) - Body ground Always 10 kΩ or higher
N4-4 (WJSL) or O6-1 (WJSL) - N4-3 (WJRL) or O6-2 (WJRL) Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N4-3 (WJRL) or O6-2 (WJRL) - Body ground Always Below 1 V



Result:
Proceed to
OK
NG



OK

3.INSPECT REAR 4WD LINEAR SOLENOID LH (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT REAR 4WD LINEAR SOLENOID LH (ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH)
a.

Turn the engine switch off.


b.

Disconnect the O6 rear 4WD linear solenoid LH (electro magnetic control coupling sub-assembly LH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O6-1 (WJSL) - O6-2 (WJRL) 20°C (68°F) 2.2 to 2.6 Ω



Result:
Proceed to
OK
NG



OK

CHECK INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

REPLACE ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY RH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR DIFFERENTIAL CARRIER ASSEMBLY (for Torque Vectoring Differential)>DISASSEMBLY
