RM36D0EC _51 Engine / Hybrid System _083058 M20D-FKS ENGINE CONTROL _0401820 ACTIVE CONTROL ENGINE MOUNT(for Front Side) A

M20D-FKS ENGINE CONTROL ACTIVE CONTROL ENGINE MOUNT(for Front Side) REMOVAL

PROCEDURE

Hide Display 17650H 1.REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>VACUUM SWITCHING VALVE (for Engine Mounting)>REMOVAL201910,999999,_51,_083058,_0401819,RM100000001JDU3,

Hide Display 53895B 2.REMOVE FRONT FENDER SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0303,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0303,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0303,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0303,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 3.REMOVE FRONT FENDER SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0304,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0304,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0304,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0304,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 4.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0003,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0003,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 5.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0004,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0004,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 12361A 6.REMOVE FRONT ENGINE MOUNTING INSULATOR

a.

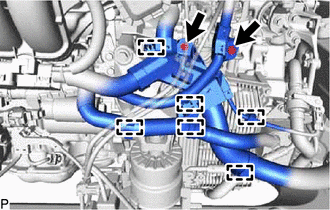

A433246

Detach the 6 clamps and remove the 2 bolts.

b.

A433247

Disconnect the vacuum hose from the front engine mounting insulator.

c.

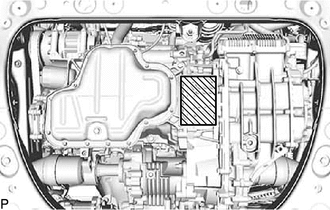

A433248C01

0,0 0,0 false

V100155

Wooden Block Placement Location

Support the engine assembly with transaxle using a jack and wooden block.

d.

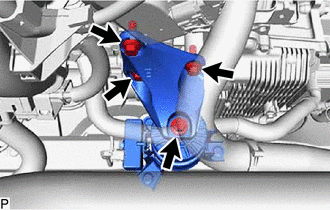

A433249

Remove the 4 bolts and front engine mounting bracket.

e.

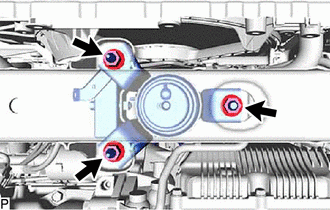

A433250

Remove the 3 nuts and front engine mounting insulator from the front frame assembly.
