M20D-FKS ENGINE CONTROL  VACUUM SWITCHING VALVE(for Engine Mounting)  REMOVAL

12601B 1.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

17751 2.REMOVE NO. 1 INLET AIR CLEANER

3.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

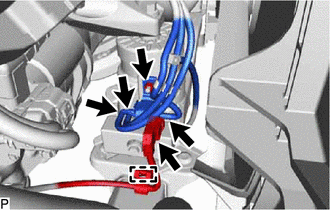

17650H 4.REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

a.

Detach the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.

b.

Disconnect the 3 vacuum hoses from the vacuum switching valve (for active control engine mount system).

c.

Remove the nut and vacuum switching valve (for active control engine mount system) from the front engine mounting insulator.
