| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Memory | Note |
|---|---|---|---|---|---|
| C061012 | Right Electric Parking Brake Actuator Control Circuit Short to Battery | ·
Diagnosis Condition: Electric parking brake not operating ·
Malfunction Status: The ECU power supply is normal but there is a malfunction in the electric parking brake actuator RH internal circuit (short to +B). ·
Detection Time: Approximately 0.015 to 0.195 seconds (depending on each malfunction) |
·
Parking brake actuator assembly RH ·
No. 1 parking brake wire assembly ·
Wire harness or connector ·
Skid control ECU (brake actuator assembly) |
DTC stored | An electric parking brake system malfunction is displayed on the multi-information display. |
The electric parking brake may still operate up to 20 seconds after the ignition switch is turned off. Before disconnecting connectors or fuses, turn the ignition switch off and wait 20 seconds or more.
After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.
When replacing the skid control ECU (brake actuator assembly), operate the electric parking brake switch (integration control and panel assembly) as the parking brake indicator light blinks when the ignition switch is first turned to ON.
Turn the ignition switch off.
Make sure the No. 1 parking brake wire assembly is securely installed.
Disconnect the M49 parking brake actuator assembly RH connector.

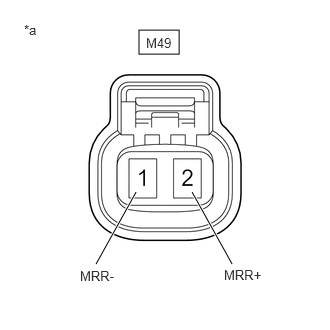

| *a | Front view of No. 1 Parking Brake Wire Assembly
(to Parking Brake Actuator Assembly RH) |
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| M49-2 (MRR+) - M49-1 (MRR-) | Electric parking brake not operating | Below 1 V |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the MM3 No. 1 parking brake wire assembly connector.
| *a | Front view of wire harness connector
(to No. 1 Parking Brake Wire Assembly) |
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| MM3-1 - MM3-2 | Electric parking brake not operating | Below 1 V |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the MM3 No. 1 parking brake wire assembly connector.
Disconnect the A39 skid control ECU (brake actuator assembly) connector.
Measure the voltage according to the value(s) in the table below.

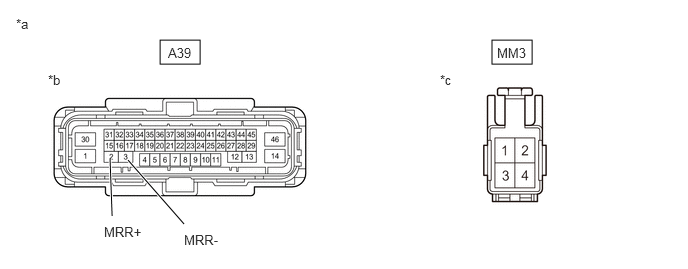

| *a | Front view of wire harness connector | *b | (to Skid Control ECU (Brake Actuator Assembly)) |
| *c | (to No. 1 Parking Brake Wire Assembly) | - | - |
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| MM3-1 or A39-2 (MRR+) - Body ground | Always | Below 1 V |
| MM3-2 or A39-3 (MRR-) - Body ground | Always | Below 1 V |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
