RM36D0EC _54 Brake _083081 PARKING BRAKE _0403275 ELECTRIC PARKING BRAKE ACTUATOR A

PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 2.RELEASE PARKING BRAKE

a.

Turn the ignition switch to ON.


b.

Move the shift lever to P.


c.

Operate the electric parking brake switch assembly to release the parking brake.

HINT:

If the parking brake cannot be released:

·

for Gasoline Model:

Click hereBrake>PARKING BRAKE>FORCED RELEASE (for Gasoline Model)>OPERATION METHOD

·

for HV Model:

Click hereBrake>PARKING BRAKE>FORCED RELEASE (for HV Model)>OPERATION METHOD




d.

Turn the ignition switch to OFF.


Hide 4.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.

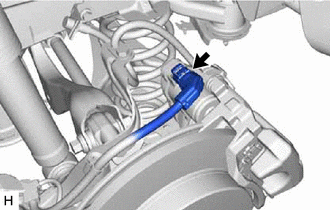

C400765

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly LH.

NOTICE:
·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.




Hide 46310B 5.REMOVE PARKING BRAKE ACTUATOR ASSEMBLY LH

a.

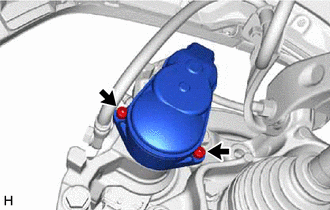

C400766

Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly LH.

NOTICE:
·

Check that there are no brake fluid leaks from the back of the rear disc brake cylinder assembly.

·

If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.




b.

Remove the O-ring from the parking brake actuator assembly LH.
