RM36D0EC _59 Vehicle Exterior _083107 WINDOW / GLASS _0400970 QUARTER WINDOW GLASS A

WINDOW / GLASS QUARTER WINDOW GLASS REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 62480A 1.REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>NOISE FILTER>REMOVAL201910,202004,_56,_083086,_0400678,RM100000001J9C2,202004,999999,_56,_083086,_0400678,RM100000001MYU4,

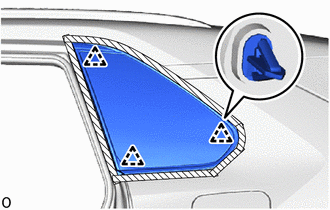

Hide Display 62720A 2.REMOVE QUARTER WINDOW ASSEMBLY LH

NOTICE:: ·

Be sure to replace the quarter window assembly LH with a new one.

·

When separating the quarter window assembly LH, be careful not to damage the paint or interior and exterior ornaments.

0,0 0,0 false

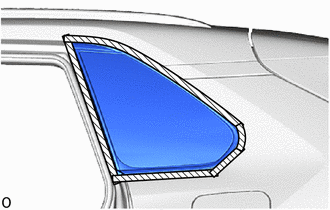

Protective Tape

Apply protective tape to the area around the installation position of the quarter window assembly LH on the vehicle body to prevent it from being scratched.

0.177,2.906 0.49,3.104 0.313,0.198 10 false *a 2.24,3.792 2.552,3.99 0.313,0.198 10 false *a 2.229,2.417 2.542,2.615 0.313,0.198 10 false *a 1.292,0.958 1.448,1.156 0.156,0.198 10 false A 1.792,1.042 1.948,1.24 0.156,0.198 10 false B 1.771,1.427 1.927,1.625 0.156,0.198 10 false C 2.208,0.552 2.365,0.75 0.156,0.198 10 false B 1.844,2.135 2,2.333 0.156,0.198 10 false C 0.615,1.177 0.854,1.344 0.24,0.167 10 false A 0.24,2.24 0.708,2.448 0.469,0.208 10 false A-A 2.115,2.708 2.583,2.917 0.469,0.208 10 false B-B 0.698,3.625 1.167,3.833 0.469,0.208 10 false C-C

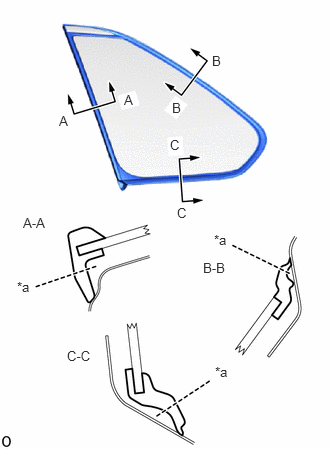

Cut

Using a knife, cut off the moulding as shown in the illustration.

0.667,0.958 0.375,1 0.375,1 0.688,0.646 true 2.792,1.01 2.521,1.01 2.521,1.01 2.333,1.323 true 1.427,1.604 1.479,1.104 1.479,1.104 1.094,0.656 true 0.167,0.917 0.479,1.073 0.313,0.156 10 false *a 2.865,0.958 3.104,1.115 0.24,0.156 10 true *b 1.552,1.042 1.792,1.198 0.24,0.156 10 true *b

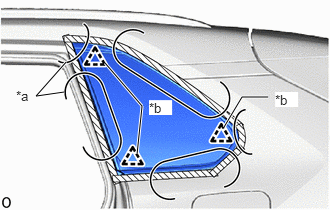

*a	Piano Wire
*b	Clip

Pass a piano wire between the vehicle body and quarter window assembly LH from the interior.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

Cut off the adhesive by pulling the piano wire around the quarter window assembly LH.

Install the suction cups to the quarter window assembly LH.

Using suction cups, detach the clip and remove the quarter window assembly LH.

NOTICE:: ·

Do not to drop the quarter window assembly LH.

·

Be sure to replace the quarter window assembly LH with a new one.
