RM36D0EC _56 Audio / Visual / Telematics _083086 AUDIO / VIDEO _0400678 NOISE FILTER A

AUDIO / VIDEO NOISE FILTER REMOVAL

PROCEDURE

Hide Display 58410B 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0009,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0009,

Hide Display 58417H 2.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0030,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0030,

Hide Display 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0022,

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0001,

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0001,

Hide Display 67918E 5.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0071,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0071,

Hide Display 58386 6.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0011,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0011,

Hide Display 7.REMOVE REAR SEATBACK ASSEMBLY LH

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0012,

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0012,

Hide Display 58467H 8.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>REMOVAL202004,999999,_51,_083048,_0400707,RM100000001MYUR_02_0130,

Hide Display 71304C 9.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W_01_0032,

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R_01_0032,

Hide Display 73706 10.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 58577E 11.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0034,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0034,

Hide Display 62332C 12.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the rear door opening trim weatherstrip LH so that the rear seat side garnish LH and inner roof side garnish assembly LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62552F 13.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0026,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0026,

Hide Display 73708A 14.REMOVE TETHER ANCHOR BRACKET SET

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0028,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0028,

Hide Display 58460D 15.REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0001,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0001,

Hide Display 64740E 16.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0003,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0003,

Hide Display 62480A 17.REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0005,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0005,

Hide Display 86011A 18.REMOVE RADIO SETTING CONDENSER

NOTICE:: When the terminal cover is removed, the radio setting condenser must be replaced because the terminal cover and condenser are supplied as a set.

a.

E406831

Remove the bolt.

b.

Detach the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.

c.

E365957C03

0,0 0,0 false

V113147

Remove in this Direction

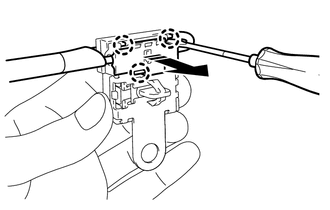

Using a screwdriver, detach the claw and remove the terminal cover with wire harness from the condenser as shown in the illustration.

d.

E227453

Using a screwdriver, bend back and break off the claw as shown in the illustration.

e.

Remove the terminal cover from the wire harness.

NOTICE:: ·

Make sure to hold the crimping side of the terminal when disconnecting the wire harness from the terminal cover.

·

Make sure not to bend the exposed wire when disconnecting the wire harness from the terminal cover.

·

Check for deformation of the terminal after the wire harness has been removed from the terminal cover.
