SUPPLEMENTAL RESTRAINT SYSTEMS SRS SEAT CUSHION AIRBAG ASSEMBLY DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

An airbag or pretensioner may be accidentally deployed by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.

·

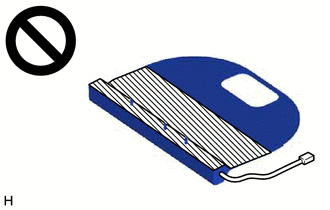

Never dispose of a front seat cushion airbag assembly RH with an undeployed airbag.

·

The airbag produces an exploding sound when it is deployed, so perform the operation outdoors where it will not disturb nearby residents.

·

When deploying the airbag, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical noise.

·

When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the front seat cushion airbag assembly RH.

·

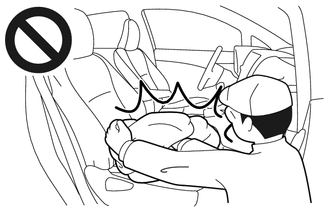

The front seat cushion airbag assembly RH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

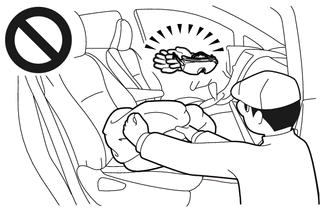

Use gloves and safety glasses when handling a front seat cushion airbag assembly RH with a deployed airbag.

·

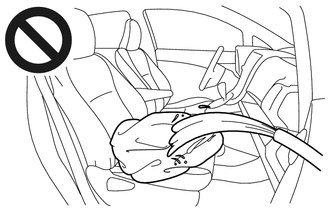

Do not apply water, etc. to a front seat cushion airbag assembly RH with a deployed airbag.

·

Always wash your hands with water after completing the operation.

HINT:: When scrapping a vehicle equipped with an SRS or disposing of the front seat cushion airbag assembly RH, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

Hide Display 739F0 2.DISPOSE OF FRONT SEAT CUSHION AIRBAG ASSEMBLY RH (When Installed to Vehicle)

NOTICE:: ·

When disposing of a front seat cushion airbag assembly RH, never use the customer's vehicle to deploy the airbag.

·

Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202307,999999,_58,_080741,_0392902,RM100000002D3D6_01_0001,

SST: 09082-00700

Refer to Precaution.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Disconnect the front seat cushion airbag assembly RH connector under the front seat assembly RH.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

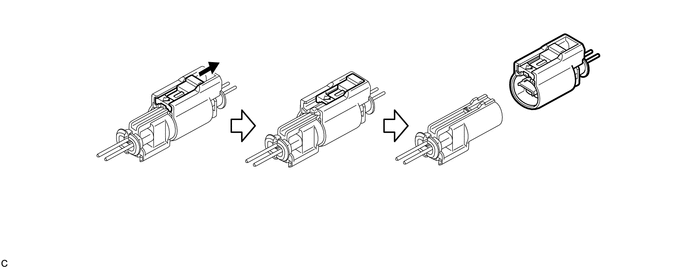

Slide the slider to release the lock, and then disconnect the connector.

1.948,0.906 1.948,2.031 false 3.615,0.885 3.615,2 false 1.865,2.052 2.042,2.219 0.177,0.167 10 false *a 3.531,2.021 3.708,2.188 0.177,0.167 10 false *a

*a	Slider	-	-
	Slide	-	-

Install SST.

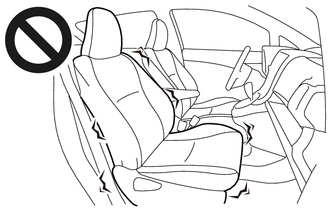

CAUTION:: Check that there is no looseness in the front seat assembly RH.

2.115,1.552 2.635,1.552 true 2.188,0.563 2.698,0.563 2.698,0.563 2.698,0.844 true 1.854,0.479 2.188,0.688 0.333,0.208 10 true SST 2.667,1.469 3,1.677 0.333,0.208 10 true SST

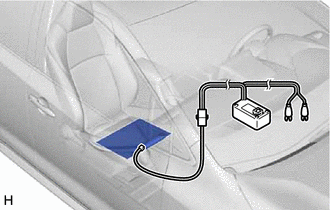

After connecting the following SST to each other, connect them to the front seat cushion airbag assembly RH.

SST: 09082-00700
09082-00750

NOTICE:: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

ii.

1.76,0.552 1.99,0.25 1.99,0.25 2.188,0.25 false 0.458,1.167 0.677,1.167 false 0.677,1.167 0.927,1.396 false 2.229,0.167 2.542,0.323 0.313,0.156 10 false *a 1.594,1.802 1.906,1.958 0.313,0.156 10 false *b 0.177,1.104 0.573,1.323 0.396,0.219 10 false SST

*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

Move SST at least 10 m (32.8 ft.) away from the front side window of the vehicle.

iii.

Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.

NOTICE:: Take care not to damage the SST wire harness.

iv.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

Deploy the airbag.

Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

ii.

Press the SST activation switch to deploy the airbag.

CAUTION:: ·

Before deployment, make sure that no one is inside or near the vehicle.

·

The front seat cushion airbag assembly RH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

Use gloves and safety glasses when handling a front seat cushion airbag assembly RH with a deployed airbag.

·

Do not apply water, etc. to a front seat cushion airbag assembly RH with a deployed airbag.

·

Always wash your hands with water after completing the operation.

HINT:: The airbag is deployed as the LED of the SST activation switch comes on.

Hide Display 739F0 3.DISPOSE OF FRONT SEAT CUSHION AIRBAG ASSEMBLY RH (When not Installed to Vehicle)

NOTICE:: Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202307,999999,_58,_080741,_0392902,RM100000002D3D6_01_0002,

SST: 09082-00700

Remove the front seat cushion airbag assembly RH.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SRS SEAT CUSHION AIRBAG ASSEMBLY>REMOVAL202307,999999,_58,_080741,_0392908,RM100000002D3R4,

CAUTION:

Before removing the front seat assembly RH, wait at least 90 seconds after turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off and disconnecting the cable from the negative (-) auxiliary battery terminal.

0,0 0,0 false

Deployment Side

When storing the front seat cushion airbag assembly RH, keep the airbag deployment side facing upward.

2.313,0.938 2.052,0.427 2.052,0.427 1.875,0.427 false 2.656,1.469 2.896,1.646 0.24,0.177 10 *a 1.635,0.333 1.844,0.521 0.208,0.188 10 *b

*a	Wire Diameter
*b	Stripped Wire Cross Sectional Area

Using braided wire, tie down the front seat cushion airbag assembly RH to an unneeded tire.

Wire:: Stripped Wire Cross Sectional Area; 1.25 mm² (0.0019 in.²) or more

CAUTION:: If the wire is too thin or an alternative object is used to tie down the front seat cushion airbag assembly RH, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm² (0.0019 in.²).

HINT:: To calculate the cross sectional area of the stripped wire:; Cross sectional area = 3.14 x (Diameter)² / 4

Install the 2 nuts to the front seat cushion airbag assembly RH.

ii.

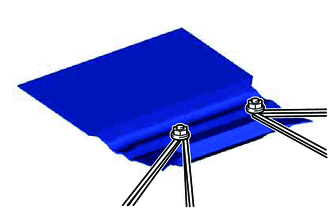

Wind 2 or more wires around the stud bolts of the front seat cushion airbag assembly RH as shown in the illustration.

iii.

2.125,0.031 2.438,0.188 0.313,0.156 10 *a 0.833,0.979 1.146,1.135 0.313,0.156 10 *b

*a	Width
*b	Inner Diameter

Position the front seat cushion airbag assembly RH inside the tire as shown in the illustration.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

CAUTION:

Make sure that the wires are tight. If there is slack in the wires, the front seat cushion airbag assembly RH may break loose when the airbag is deployed.

0.604,0.531 0.76,0.729 0.156,0.198 10 false .

Deployment Side

Always tie down the front seat cushion airbag assembly RH as shown in the illustration.

NOTICE:: The tire may be damaged by the airbag deployment, so use an unneeded tire.

Install SST.

0.677,1.5 0.677,0.875 0.677,0.875 0.979,0.875 false 1.01,0.802 1.469,1 0.458,0.198 10 false SST

Connect the SST connector to the front seat cushion airbag assembly RH connector.

SST: 09082-00750

Place the tires.

2.49,0.656 2.802,0.813 0.313,0.156 10 false *a 1.667,0.01 1.979,0.167 0.313,0.156 10 false *b 0.885,0.844 1.198,1 0.313,0.156 10 false *c 2.479,1.625 2.792,1.781 0.313,0.156 10 false *a

*a	Tires (2 or more)
*b	Inner Diameter
*c	Width

Place at least 2 tires under the tire to which the front seat cushion airbag assembly RH is tied.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

NOTICE:: Do not place the SST connector under the tire because it could be damaged.

ii.

Place at least 2 tires onto the tire to which the front seat cushion airbag assembly RH is tied. The top tire should have a wheel installed.

NOTICE:: The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

iii.

Tie the tires together with 2 wires.

CAUTION:: Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

Install SST.

2.615,1.406 1.896,0.583 1.896,0.583 1.563,0.583 true 1.24,1.896 1.719,1.896 false 0.406,2.656 0.406,3.063 false 1.365,0.51 1.677,0.667 0.313,0.156 10 false *1 1.75,1.813 2.063,1.969 0.313,0.156 10 false *a 1.552,2.906 1.865,3.063 0.313,0.156 10 false *b 0.292,3.083 0.75,3.281 0.458,0.198 10 false SST

*1	Front Seat Cushion Airbag Assembly RH
*a	Auxiliary Battery
*b	10 m (32.8 ft.) or more

Connect the SST connector.

SST: 09082-00700

NOTICE:: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

ii.

Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

Deploy the airbag.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

ii.

Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the front seat cushion airbag assembly RH is tied.

iii.

Press the SST activation switch to deploy the airbag.

CAUTION:: Before deployment, make sure that no one is near the airbag.

HINT:: The airbag is deployed as the LED of the SST activation switch comes on.

Dispose of the front seat cushion airbag assembly RH.

CAUTION:: ·

The front seat cushion airbag assembly RH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

Use gloves and safety glasses when handling a front seat cushion airbag assembly RH with a deployed airbag.

·

Do not apply water, etc. to a front seat cushion airbag assembly RH with a deployed airbag.

·

Always wash your hands with water after completing the operation.

Remove the front seat cushion airbag assembly RH from the tire.

ii.

Place the front seat cushion airbag assembly RH in a plastic bag, tie it tightly, and dispose of it according to local regulations.
