SUPPLEMENTAL RESTRAINT SYSTEMS  SRS SEAT CUSHION AIRBAG ASSEMBLY  INSTALLATION


PROCEDURE

Hide 739F0 1.INSTALL FRONT SEAT CUSHION AIRBAG ASSEMBLY RH

a.

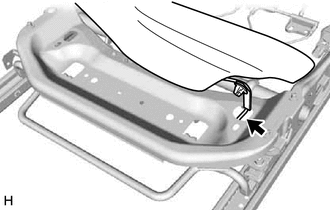

B520897

Pass the airbag wire harness through the hole.


b.

Install the front seat cushion airbag assembly RH with 2 new nuts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)

NOTICE:
·

Do not reuse the nuts.

·

Make sure that the front seat adjuster assembly RH is not deformed. If it is deformed, replace it with a new one.




c.

Engage the claw and 2 clamps.

HINT:

Engage the claw first.



Hide 2.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REASSEMBLY


Hide 3.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REASSEMBLY


Hide 72525A 6.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REASSEMBLY


Hide 72551B 7.INSTALL RECLINING HINGE COVER RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REASSEMBLY


Hide 8.CONNECT SEPARATE TYPE FRONT SEATBACK COVER RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REASSEMBLY


Hide 9.INSTALL FRONT SEAT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>INSTALLATION
