RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392101 LUGGAGE COMPARTMENT DOOR(for GTMC Made) A

DOOR / HATCH LUGGAGE COMPARTMENT DOOR(for GTMC Made) DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during luggage compartment door removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Rear television camera assembly*	· Parking assist monitor system initialization · Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Rear television camera assembly*	Rear television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Rear television camera assembly*	· Parking assist monitor system initialization · Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

PROCEDURE

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

a.

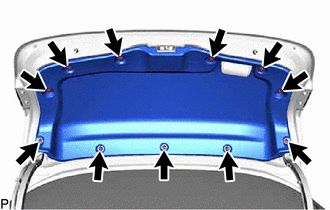

B544682

Using a clip remover, remove the 11 clips and luggage compartment door cover.

Hide Display 74649 2.REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

a.

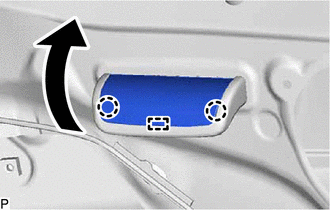

B544683

Disengage the 2 claws and guide as shown in the illustration.

b.

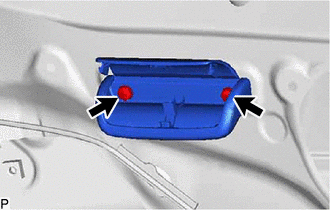

B544685

Remove the 2 screws and luggage compartment door assist grip.

Hide Display 64610 3.REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>LUGGAGE COMPARTMENT DOOR LOCK>REMOVAL201906,999999,_58,_080729,_0392013,RM100000001HNIH_02_0058,

Hide Display 4.REMOVE REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY (for GTMC Made)>REMOVAL201906,999999,_59,_080784,_0393162,RM100000001HW5G_01_0071,

Hide Display 5.REMOVE REAR LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 6.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (for GTMC Made)>REMOVAL201906,999999,_59,_080736,_0392559,RM100000001HRJC_01_0005,

Hide Display 84945 7.REMOVE LUGGAGE ELECTRICAL KEY SWITCH (w/ Smart Entry and Start System)

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH>REMOVAL201906,999999,_59,_080735,_0392105,RM100000001HO1F_01_0030,

Hide Display 86790D 8.REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Rear Monitor)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL202307,999999,_56,_080754,_0394059,RM100000002CWKF_01_0038,

Hide Display 64459 9.REMOVE LUGGAGE COMPARTMENT DOOR CUSHION

a.

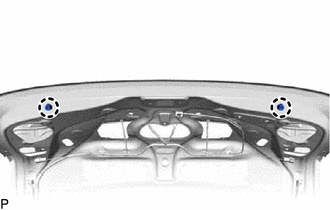

B544686

Disengage the 2 claws to remove the 2 luggage compartment door cushions.

Hide Display 10.REMOVE HOLE PLUG

a.

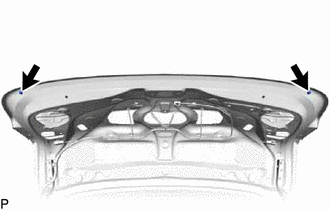

B544687

Remove the 2 hole plugs.

Hide Display 81270 11.REMOVE LICENSE PLATE LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>REMOVAL201906,999999,_59,_080784,_0393166,RM100000001HW5U_03_0005,

HINT:: Use the same procedure for the RH side and LH side.
