DOOR / HATCH LUGGAGE COMPARTMENT DOOR(for TFTM Made) REASSEMBLY
PROCEDURE
81270
1.INSTALL LICENSE PLATE LIGHT ASSEMBLY
- HINT:
-
Use the same procedure for the RH side and LH side.
86790D
2.INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/ Rear Monitor)
84945
3.INSTALL LUGGAGE ELECTRICAL KEY SWITCH (w/ Smart Entry and Start System)
76801
4.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
76827A
5.INSTALL NO. 2 BACK DOOR GARNISH RETAINER
81590A
6.INSTALL REAR LIGHT ASSEMBLY LH
81580D
7.INSTALL REAR LIGHT ASSEMBLY RH
- HINT:
-
Use the same procedure as for the LH side.

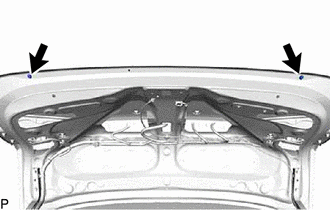

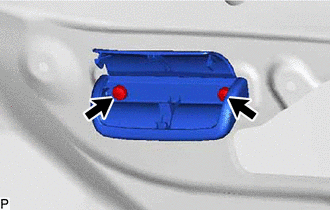

8.INSTALL HOLE PLUG
Install 2 new hole plugs.
64459

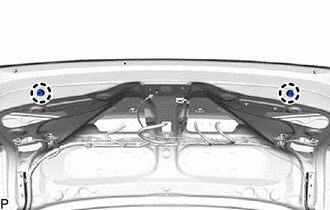

9.INSTALL LUGGAGE COMPARTMENT DOOR CUSHION
Engage the 2 claws to install 2 new luggage compartment door cushions.
64610
10.INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
74649

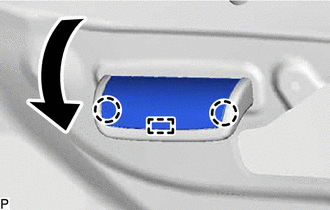

11.INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
Install the luggage compartment door assist grip with the 2 screws.
Engage the guide and 2 claws as shown in the illustration.
64719A

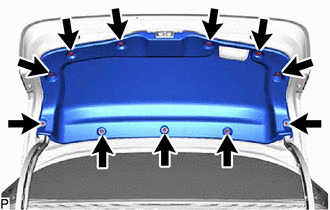

12.INSTALL LUGGAGE COMPARTMENT DOOR COVER
Install the luggage compartment door cover with the 11 clips.
13.PERFORM CALIBRATION
w/ Parking Assist Monitor System:
w/ Panoramic View Monitor System:
