DOOR LOCK  REAR DOOR LOCK  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door lock with motor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
·

Rear door glass sub-assembly

·

Rear door glass run

·

Rear door inner glass weatherstrip


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Catch protection function

·

Window open warning function


(Click here)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
·

Rear door glass sub-assembly

·

Rear door glass run

·

Rear door inner glass weatherstrip


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Catch protection function

·

Window open warning function


for NR Series Engine Initialization:(Click here)
except NR Series Engine Registration:(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

-

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.


Hide 64490 2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Hide 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Hide 67872 13.DISCONNECT REAR DOOR WEATHERSTRIP

a.

Disconnect the rear door weatherstrip until the screw of the rear door window division bar sub-assembly is visible.


Hide 69060A 16.REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

a.

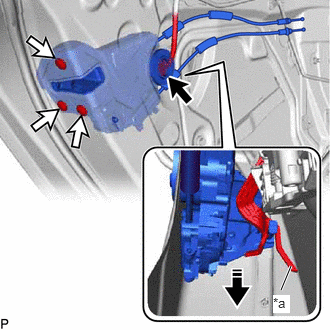

B544806C01
2.927,3.021 3.031,2.771 true 2.844,3.073 3.021,3.26 0.177,0.188 10 true *a
*a Release Plate
V113147

Remove in this Direction


Disconnect the connector.


b.

Using a T30 "TORX" socket wrench, remove the 3 screws.


c.

Move the rear door lock with motor assembly downward as shown in the illustration to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.


d.

When reusing the rear door lock with motor assembly:

i.
B544808

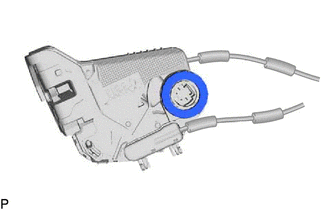

Remove the door lock wiring harness seal from the rear door lock with motor assembly.



Hide 69038A 17.REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY (w/ Cover)

a.
B683088

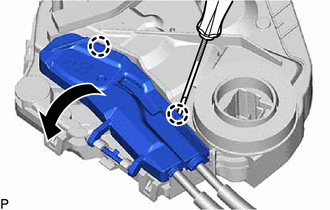

Using a screwdriver, disengage the 2 claws as shown in the illustration.


b.
B683090C01
0,0 0,0 false
V113147

Remove in this Direction

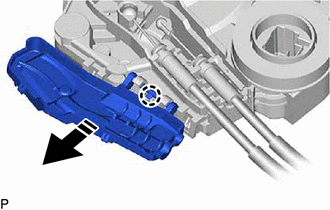

Disengage the claw to remove the rear door lock cover sub-assembly as shown in the illustration.


Hide 69740E 18.REMOVE REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE

a.

w/o Cover:

i.
B544809

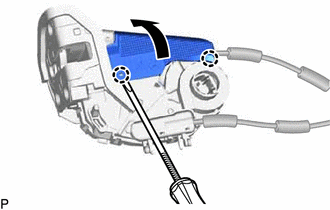

Using a screwdriver, disengage the 2 claws and open the cover as shown in the illustration.


ii.
B544811C01
0,0 0,0 false
V113147

Remove in this Direction

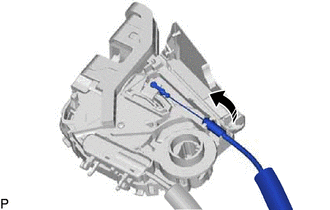

Remove the rear door lock open lever remote control cable as shown in the illustration.



b.

w/ Cover:

i.
B683092C01
0,0 0,0 false
V113147

Remove in this Direction


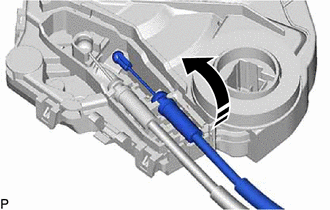

Remove the rear door inside lock/unlock knob locking cable as shown in the illustration.



Hide 69780E 19.REMOVE REAR DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE

a.

w/o Cover:

i.
B544813

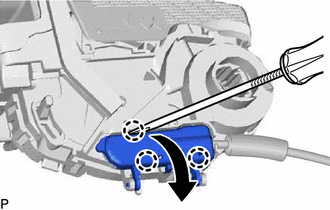

Using a screwdriver, disengage the 3 claws and open the cover as shown in the illustration.


ii.
B544815C01
0,0 0,0 false
V113147

Remove in this Direction

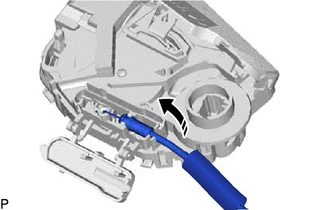

Remove the rear door inside lock/unlock knob locking cable as shown in the illustration.



b.

w/ Cover:

i.
B683094C01
0,0 0,0 false
V113147

Remove in this Direction

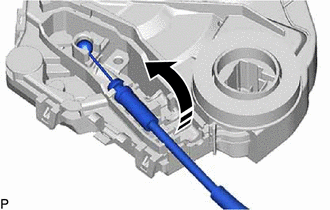

Remove the rear door inside lock/unlock knob locking cable as shown in the illustration.
