EXTERIOR PANELS / TRIM FRONT DOOR BELT MOULDING REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door belt moulding removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Door window regulator sub-assembly* ·
Power window regulator motor sub-assembly* ·
Door glass* ·
Door glass run* ·
Door belt moulding* ·
Door glass weatherstrip inner* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
for NR Series Engine Initialization:( 202304,999999,_59,_080745,_0600092,RM100000002BB4K,)
except NR Series Engine Registration:( 202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System Perform steering sensor zero point calibration ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Door window regulator sub-assembly* ·
Power window regulator motor sub-assembly* ·
Door glass* ·
Door glass run* ·
Door belt moulding* ·
Door glass weatherstrip inner* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
(202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
64490
2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,
69284F
4.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
74640E
5.REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY
6.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
7.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
67602
8.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
67664C
9.REMOVE DOOR UPPER FRAME GARNISH
67838D
10.REMOVE FRONT DOOR VENT SEAL
67836C
11.REMOVE NO. 3 FRONT DOOR SERVICE HOLE COVER
67832
12.REMOVE FRONT DOOR SERVICE HOLE COVER
68102
13.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
68151D
14.REMOVE FRONT DOOR GLASS RUN
67862
15.DISCONNECT FRONT DOOR WEATHERSTRIP
Disconnect the front door weatherstrip until the screw of the front door front lower frame sub-assembly is visible.
67402F
16.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
17.REMOVE FRONT DOOR FIX WINDOW WEATHERSTRIP WITH FRONT DOOR FIX WINDOW GLASS
75720
18.REMOVE FRONT DOOR BELT MOULDING
|

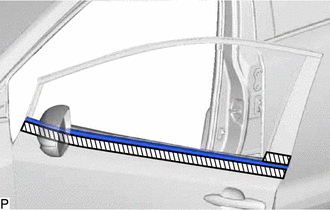

Protective Tape |
Apply protective tape around the front door belt moulding as shown in the illustration.
|

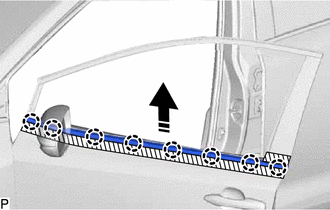

Remove in this Direction |
Disengage the 8 claws as shown in the illustration to remove the front door belt moulding.
