RM3660EC _58 Vehicle Interior _080741 SUPPLEMENTAL RESTRAINT SYSTEMS _0392904 KNEE AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  KNEE AIRBAG ASSEMBLY  INSTALLATION


PROCEDURE

Hide 73900 1.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

a.

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.
B520842C01
2.021,1.01 2.25,1.01 2.25,1.01 2.448,0.698 true 0.823,2.323 1.5,2.323 true 0.625,2.219 0.823,2.427 0.198,0.208 10 true *a 1.865,0.917 2.073,1.125 0.208,0.208 10 false *b

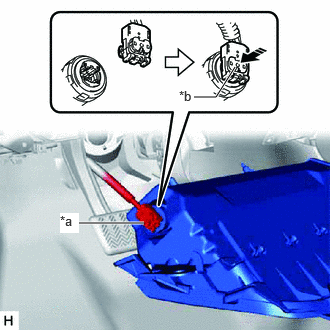

*a Airbag Connector
*b Airbag Connector Locking Button
V113147

Push in this Direction


Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.



d.

Push in the airbag connector locking button to install the airbag connector.


e.
B520954

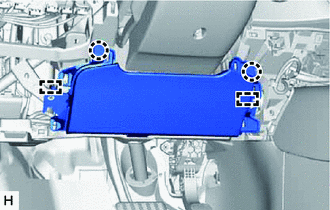

Engage the 2 hooks to temporarily install the lower No. 1 instrument panel airbag assembly.


f.

Engage the 2 claws.


g.

Install the lower No. 1 instrument panel airbag assembly with the 2 bolts.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:

Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.



Hide 12. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
