RM3660EC _58 Vehicle Interior _080741 SUPPLEMENTAL RESTRAINT SYSTEMS _0392904 KNEE AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS KNEE AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during lower No. 1 instrument panel airbag assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,

NOTICE:: After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

CAUTION:: Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Hide Display 67914 3.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0001,

Hide Display 62112A 4.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0268,

Hide Display 55606 5.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55317E 6.REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0010,

Hide Display 53601 7.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0011,

Hide Display 55432B 8.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0044,

Hide Display 55434F 9.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 73900 10.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

CAUTION:

0.604,0.521 0.76,0.719 0.156,0.198 10 false .

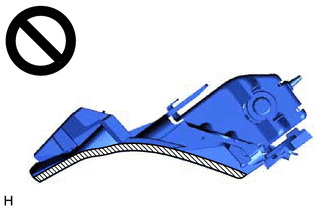

Deployment Side

When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side facing upward.

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

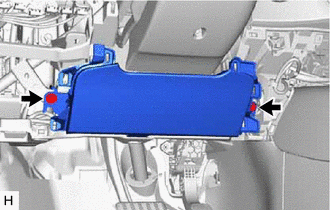

Remove the 2 bolts.

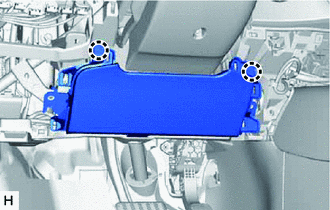

Disengage the 2 claws and separate the lower No. 1 instrument panel airbag assembly.

NOTICE:: When separating the lower No. 1 instrument panel airbag assembly, do not pull the airbag wire harness.

1.063,0.719 1.219,1.031 1.219,1.031 1.406,1.031 true 1.365,2.177 1.094,2.583 1.094,2.583 0.781,2.583 true 1.521,2.344 1.177,2.865 1.177,2.865 0.865,2.865 true 0.563,2.5 0.771,2.688 0.208,0.188 10 true *a 0.688,2.771 0.875,2.969 0.188,0.198 10 true *b 1.406,0.938 1.719,1.094 0.313,0.156 10 false *c

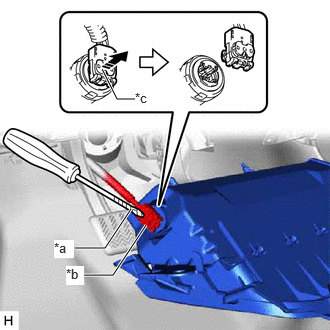

*a	Protective Tape
*b	Airbag Connector
*c	Airbag Connector Locking Button
	Release in this Direction

Using a screwdriver with its tip wrapped with protective tape, release the airbag connector locking button.

Disconnect the airbag connector to remove the lower No. 1 instrument panel airbag assembly.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.
