METER / GAUGE / DISPLAY METER / GAUGE SYSTEM(for 12.3 Inch Display) Fuel Lid Opener System Operation Message Display Malfunction
DESCRIPTION
The combination meter assembly and ECM are connected via direct line. The combination meter assembly displays fuel lid opener system operation messages according to the fuel lid signals received from the ECM.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
·When replacing of the following ECUs, update the ECU security key.
-Combination meter assembly
-ECM
·The following troubleshooting procedure is based on the assumption that the SFI system and fuel lid opener system are normal. Confirm that the SFI system and fuel lid opener system are not malfunctioning before performing the following procedure.
SFI system (for 8ZR-FXE): Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201906,999999,_51,_080778,_0393982,RM100000001I22L,
SFI system (for M20F-FXS, M20G-FXS): Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING202307,999999,_51,_146896,_0611112,RM100000002CI3U,
Fuel lid opener system: Click hereVehicle Exterior>DOOR / HATCH>FUEL LID OPENER SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201906,999999,_59,_080735,_0392165,RM100000001HOGS,
PROCEDURE
Choose the model to be inspected.
- Result:
Result Proceed to for 8ZR-FXE A for M20F-FXS, M20G-FXS B
A
B

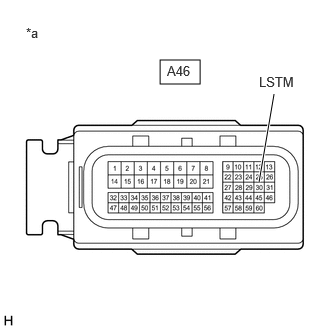

| *a | Front view of wire harness connector
(to ECM) |
Disconnect the A46 ECM connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition A46-30 (LSTM) - Body ground Ignition switch off 11 to 14 V
- Result:
Proceed to OK NG
OK
NG

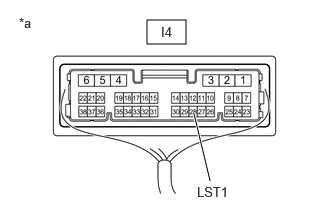

| *a | Component with harness connected
(Combination Meter Assembly) |
Connect the ECM connector.
Operate the fuel lid opener switch.
Check the signal waveform according to the condition(s) in the table below.
- NOTICE:
-
Perform the inspection from the back of the connector with the connector connected.
Waveform 1:
| Item | Condition |
|---|---|
| Tester Connection | I4-28 (LST1) - Body ground |
| Tool setting | 5 V/DIV., 20 ms./DIV. |
| Condition | The following message (interrupt display) being displayed on the multi-information display:
"Ready to Refuel" |
Waveform 2:
| Item | Condition |
|---|---|
| Tester Connection | I4-28 (LST1) - Body ground |
| Tool setting | 5 V/DIV., 20 ms./DIV. |
| Condition | The following message (interrupt display) being displayed on the multi-information display:
"Close Fuel Lid" |
- HINT:
-
This waveform is output when the fuel lid opener switch is operated if the fuel lid is open and any of the following conditions are met:
- ·
The vehicle has been driven for 1 km (0.6 mile) or more at a speed of 50 km/h (31 mph) or more.
·30 minutes or more have elapsed since the fuel lid opener switch was operated.
- Result:
Result Proceed to All of the waveforms are output normally A A waveform is not output normally B
A
B
Disconnect the I4 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition A46-30 (LSTM) - I4-28 (LST1) Always Below 1 Ω A46-30 (LSTM) or I4-28 (LST1) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG

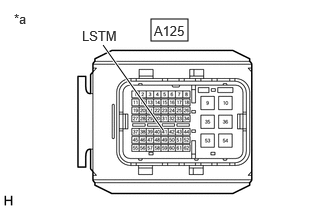

| *a | Front view of wire harness connector
(to ECM) |
Disconnect the A125 ECM connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition A125-41 (LSTM) - Body ground Ignition switch off 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
| *a | Component with harness connected
(Combination Meter Assembly) |
Connect the ECM connector.
Operate the fuel lid opener switch.
Check the signal waveform according to the condition(s) in the table below.
- NOTICE:
-
Perform the inspection from the back of the connector with the connector connected.
Waveform 1:
| Item | Condition |
|---|---|
| Tester Connection | I4-28 (LST1) - Body ground |
| Tool setting | 5 V/DIV., 20 ms./DIV. |
| Condition | The following message (interrupt display) being displayed on the multi-information display:
"Ready to Refuel" |
Waveform 2:
| Item | Condition |
|---|---|
| Tester Connection | I4-28 (LST1) - Body ground |
| Tool setting | 5 V/DIV., 20 ms./DIV. |
| Condition | The following message (interrupt display) being displayed on the multi-information display:
"Close Fuel Lid" |
- HINT:
-
This waveform is output when the fuel lid opener switch is operated if the fuel lid is open and any of the following conditions are met:
- ·
The vehicle has been driven for 1 km (0.6 mile) or more at a speed of 50 km/h (31 mph) or more.
·30 minutes or more have elapsed since the fuel lid opener switch was operated.
- Result:
Result Proceed to All of the waveforms are output normally A A waveform is not output normally B
A
B
Disconnect the I4 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition A125-41 (LSTM) - I4-28 (LST1) Always Below 1 Ω A125-41 (LSTM) or I4-28 (LST1) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
