TIRE PRESSURE MONITORING TIRE PRESSURE WARNING VALVE REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning valve and transmitter removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Tire pressure warning valve and transmitter | ·
ID Registration ·
Initialization ·
Tire Position Identification |
Tire Pressure Warning System | ( 202304,999999,_53,_080780,_0393956,RM100000002AI0K,)
|
| Tires | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
| Parking assist ECU initialization | Panoramic View Monitor System | (202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Tire pressure warning valve and transmitter | for Type A
·
Register transmitter ID ·
Initialize tire pressure warning system |
·
When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates ·
Tire pressure warning function |
(202304,999999,_53,_080780,_0393955,RM100000002B0BZ,)for Registration
( 202304,999999,_53,_080780,_0393955,RM100000002BB37,)for Initialization
|
for Type B
·
ID Registration ·
Initialization ·
Tire Position Identification |
Tire Pressure Warning System | (202304,999999,_53,_080780,_0592791,RM100000002AHTO,)
|
|
| Tires | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
PROCEDURE
1.REMOVE WHEEL ASSEMBLY
42607
2.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for M20 Series Engine)
Remove the tire valve cap.
- NOTICE:
-
Keep the removed tire valve cap.
Remove the valve core to release the air from the tire.
- NOTICE:
-
Make sure that a sufficient amount of air has been released.

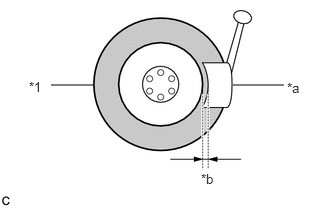

| *1 | Tire |
| *a | Shoe |
| *b | 10 to 20 mm (0.394 to 0.787 in.) |
Using a tire remover, remove the tire from the disc wheel.
- NOTICE:
- ·
Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.
·Set the tire remover shoe as shown in the illustration.

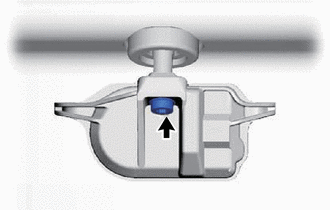

Using a T10 "TORX" driver, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
| *1 | Tubeless Tire Valve |
|
Cutting Area |
Cut the tubeless tire valve and remove it by pulling from the outer side of the disc wheel as shown in the illustration.
42607
3.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (except M20 Series Engine)
Remove the tire valve cap.
- NOTICE:
-
Keep the removed tire valve cap.
Remove the valve core to release the air from the tire.
- NOTICE:
-
Make sure that a sufficient amount of air has been released.
| *1 | Tire |
| *a | Shoe |
| *b | 10 to 20 mm (0.394 to 0.787 in.) |
Using a tire remover, remove the tire from the disc wheel.
- NOTICE:
- ·
Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.
·Set the tire remover shoe as shown in the illustration.
Using a T10 "TORX" driver, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
| *1 | Tubeless Tire Valve |
|
|
Cutting Area |
Cut the tubeless tire valve and remove it by pulling from the outer side of the disc wheel as shown in the illustration.
