REAR SUSPENSION  REAR LOWER ARM  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension arm assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Rear wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Rear wheel alignment adjustment
for NR Series
·

Perform "Reset Memory"

·

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
except NR Series
·

Perform "Reset Memory"

·

Perform "Calibration"


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 57628E 2.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

Hide 57627G 3.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

Hide 57628E 4.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

Hide 57627G 5.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

Hide 48840A 6.REMOVE REAR STABILIZER LINK ASSEMBLY (w/ Stabilizer Bar)

Hide 48740F 9.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.

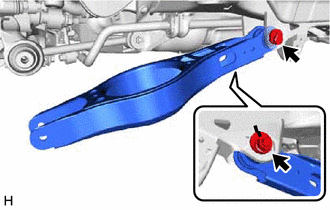

C397809

Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.

NOTICE:

Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.



Hide 48720A 10.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

a.

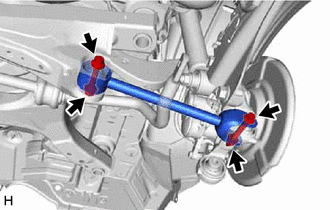

C397810

Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
