RM3660EC _53 Suspension _080787 REAR SUSPENSION _0392566 REAR COIL SPRING(for Double Wishbone Type Suspension) A

REAR SUSPENSION REAR COIL SPRING(for Double Wishbone Type Suspension) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear coil spring removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Rear wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system disabled or malfunctions	(202304,999999,_54,_080770,_0392591,RM100000002B671,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
· Tires · Suspension parts	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Rear wheel alignment adjustment	for NR Series · Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
Rear wheel alignment adjustment	except NR Series · Perform "Reset Memory" · Perform "Calibration"	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 57628E 2.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0017,

Hide Display 57627G 3.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0016,

Hide Display 57628E 4.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0018,

Hide Display 57627G 5.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0019,

Hide Display 48840A 6.REMOVE REAR STABILIZER LINK ASSEMBLY (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0015,

Hide Display 48231B 7.REMOVE REAR COIL SPRING

0.833,1.458 1.146,1.458 true 1.135,1.729 1.135,1.385 1.135,1.385 0.844,1.385 true 1.771,0.906 1.771,0.563 1.771,0.563 2.021,0.563 true 1.771,0.635 2.031,0.635 true 1.042,1.729 1.229,1.99 0.188,0.26 10 true *a 1.698,0.927 1.896,1.125 0.198,0.198 10 true *a

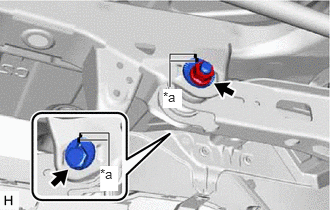

Matchmark

Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.

NOTICE:: Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

1.896,1.385 2.156,1.385 false 2.042,1.792 2.302,1.792 false 2.188,1.313 2.5,1.469 0.313,0.156 10 false *a 2.333,1.708 2.646,1.865 0.313,0.156 10 false *b

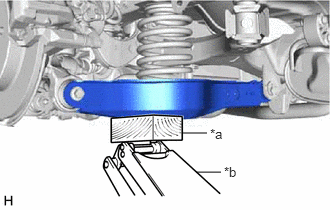

*a	Wooden Block
*b	Jack

Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:: ·

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

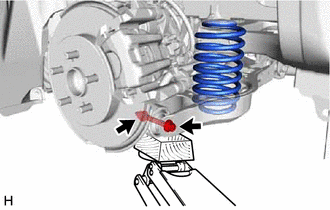

Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle carrier sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

Hide Display 48259A 8.REMOVE REAR UPPER COIL SPRING INSULATOR

Remove the rear upper coil spring insulator from the vehicle.

Hide Display 48258C 9.REMOVE REAR LOWER COIL SPRING INSULATOR

Remove the rear lower coil spring insulator from the rear No. 2 suspension arm assembly.
