RM3660EC _52 Drivetrain _080786 AXLE AND DIFFERENTIAL _0392503 REAR AXLE HUB(for Double Wishbone Type Suspension with Electric Parking Brake) A

AXLE AND DIFFERENTIAL REAR AXLE HUB(for Double Wishbone Type Suspension with Electric Parking Brake) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Tires	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Tires	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Tires	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 890C0A 2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

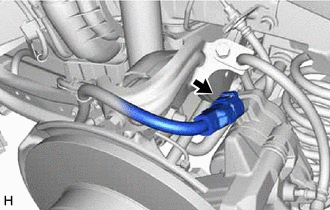

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

NOTICE:: ·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

1.76,0.979 2.271,0.979 true 2.313,0.896 2.552,1.052 0.24,0.156 10 true *a

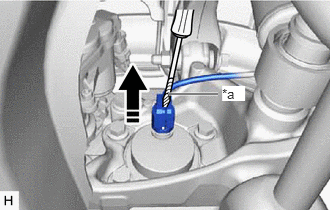

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear axle hub and bearing assembly.

NOTICE:: Be careful not to damage the rear axle hub and bearing assembly or connector cover.

Hide Display 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT (for Double Wishbone Type Suspension with Electric Parking Brake)>REPLACEMENT202307,999999,_52,_080786,_0392501,RM100000002CWH3_01_0019,

Hide Display 42431 4.REMOVE REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE (w/ Electric Parking Brake)>REMOVAL202307,999999,_54,_080788,_0392487,RM100000002COH1_04_0001,

Hide Display 42450B 5.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

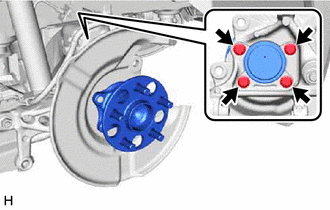

Remove the 4 bolts, rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly from the rear axle carrier sub-assembly.
