AXLE AND DIFFERENTIAL REAR AXLE HUB(for Double Wishbone Type Suspension with Electric Parking Brake) ON-VEHICLE INSPECTION
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: The vehicle height changes because of tire replacement. |
|||
| Tires | Rear television camera assembly optical axis (Back camera position setting)* | Parking Assist Monitor System | ( 202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
| Parking assist ECU initialization | Panoramic View Monitor System | (202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: The vehicle height changes because of tire replacement. |
|||
| Tires | Rear television camera assembly optical axis (Back camera position setting)* | Parking Assist Monitor System | (202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE REAR WHEEL
890C0A
2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
42431
4.REMOVE REAR DISC

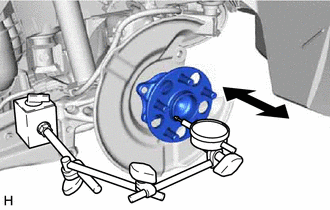

5.INSPECT REAR AXLE HUB BEARING LOOSENESS
Using a dial indicator with magnetic base, check for looseness near the center of the rear axle hub.
- Maximum Looseness:
0.05 mm (0.00196 in.)
- NOTICE:
- ·
Ensure that the dial indicator is set perpendicular to the measurement surface.
·Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.
- HINT:
-
If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

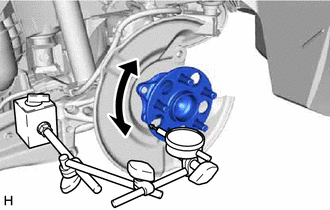

6.INSPECT REAR AXLE HUB RUNOUT
Using a dial indicator with magnetic base, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.
- Maximum Runout:
0.05 mm (0.00196 in.)
- NOTICE:
- ·
Ensure that the dial indicator is set perpendicular to the measurement surface.
·Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.
·Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.
- HINT:
-
If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.
42431
7.INSTALL REAR DISC
8.INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
890C0A
9.CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
10.INSTALL REAR WHEEL
