RM3660EC _52 Drivetrain _080786 AXLE AND DIFFERENTIAL _0392501 REAR AXLE HUB BOLT(for Double Wishbone Type Suspension with Electric Parking Brake) A

AXLE AND DIFFERENTIAL  REAR AXLE HUB BOLT(for Double Wishbone Type Suspension with Electric Parking Brake)  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub bolt removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Tires Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Tires Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

a.

Remove the 2 bolts and separate the rear disc brake caliper assembly from the rear axle carrier sub-assembly.

NOTICE:

Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose.



Hide 42312E 5.REMOVE REAR AXLE HUB BOLT

a.

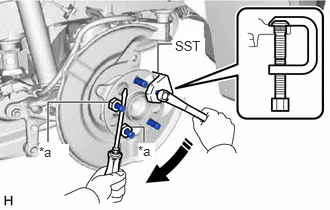

C397746C02
0.5,1.479 0.5,1.063 0.5,1.063 1.125,1.063 true 1.646,0.75 1.646,0.458 1.646,0.458 1.792,0.458 true 1.5,1.479 1.5,1.323 1.5,1.323 1.375,1.323 true 0.406,1.5 0.719,1.656 0.313,0.156 10 true *a 1.438,1.49 1.615,1.667 0.177,0.177 10 true *a 1.823,0.396 2.135,0.552 0.313,0.156 10 true SST
*a Service Nut


Temporarily install 2 service nuts to the rear axle hub bolts as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


NOTICE:

Install the service nuts to prevent damage to the rear axle hub bolts.



b.

Using SST and a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, remove the rear axle hub bolt.

SST
09611-12010

NOTICE:

Do not damage the threads of the rear axle hub bolts.



Hide 42312E 6.INSTALL REAR AXLE HUB BOLT

a.
C397747C02
2.896,1.417 2.896,0.885 true 2.094,0.458 2.542,0.458 true 1.927,0.385 2.24,0.542 0.313,0.156 10 false *a 2.823,1.438 3.073,1.635 0.25,0.198 10 false *b
*a Service Nut
*b Washer


Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly.


b.

Install a washer and service nut to the rear axle hub bolt as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


HINT:

Recommended washer thickness is 5 mm (0.197 in.) or more.



c.

Using a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, install the rear axle hub bolt by tightening the service nut.

NOTICE:
·

Install the service nuts to prevent damage to the rear axle hub bolts.

·

Do not damage the threads of the rear axle hub bolts.




d.

Remove the 3 service nuts and washer from the 3 rear axle hub bolts.


Hide 8.INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

a.

Install the rear disc brake caliper assembly to the rear axle carrier sub-assembly with the 2 bolts.

Torque:
107 N*m (1091 kgf*cm, 79 ft.*lbf)
