PARK ASSIST / MONITORING ULTRASONIC SENSOR(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
w/ Parking Support Brake System Ultrasonic sensor	· Measure ultrasonic sensor detection angle · Register ultrasonic sensor detection angle	· TOYOTA Parking Assist-sensor System (w/ Parking Support Brake System) · Parking Support Brake System	(202304,999999,_56,_080754,_0470654,RM100000002AHFT,)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
w/ Parking Support Brake System Ultrasonic sensor	· Measure ultrasonic sensor detection angle · Register ultrasonic sensor detection angle	· TOYOTA Parking Assist-sensor System (w/ Parking Support Brake System) · Parking Support Brake System	(202304,999999,_56,_080754,_0470654,RM100000002AHFT,)

PROCEDURE

Hide Display 1.REMOVE REAR BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for TFTM Made)>REMOVAL202304,999999,_59,_080736,_0392550,RM100000002AUJB,

Hide Display 89342A 2.REMOVE REAR CENTER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

0,0 0,0 false

Remove in this Direction

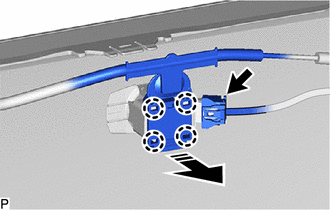

Disconnect the connector.

Disengage the 4 claws as shown in the illustration.

0,0 0,0 false

Remove in this Direction

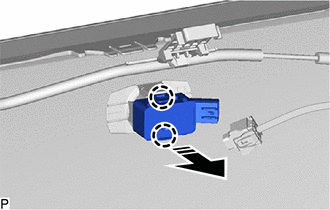

Disengage the 2 claws and remove the rear center ultrasonic sensor as shown in the illustration.

Hide Display 89342 3.REMOVE REAR CORNER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

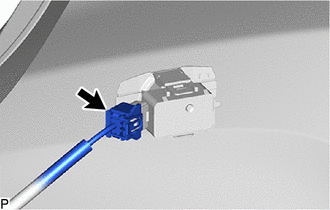

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

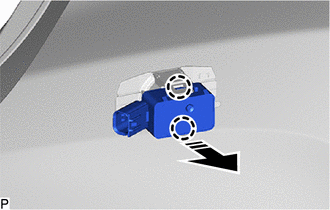

Disengage the 2 claws and remove the rear corner ultrasonic sensor as shown in the illustration.

Hide Display 89C48B 4.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

HINT:: ·

Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.

·

When removing the rear center ultrasonic sensor retainer, heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.

·

The illustration is for the LH side. Use the same procedure for the RH side and LH side.

Heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Heating Temperature:

Item	Temperature
Rear Bumper Assembly	40 to 60°C (104 to 140°F)
Rear Center Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

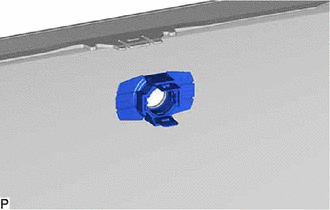

Remove the rear center ultrasonic sensor retainer.

Hide Display 89C48A 5.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

HINT:: ·

Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.

·

When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

·

The illustration is for the LH side. Use the same procedure for the RH side and LH side.

Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Heating Temperature:

Item	Temperature
Rear Bumper Assembly	40 to 60°C (104 to 140°F)
Rear Corner Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

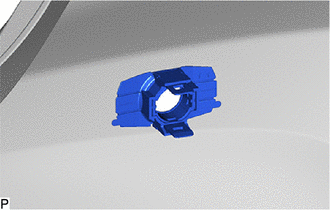

Remove the rear corner ultrasonic sensor retainer.

Hide Display 89305 6.REMOVE ULTRASONIC SENSOR CUSHION SET

HINT:: Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

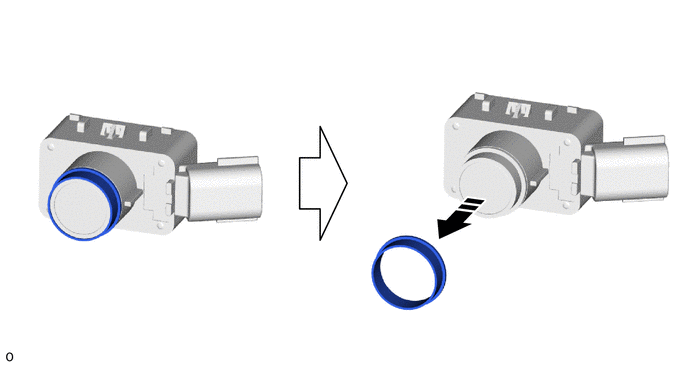

Remove the ultrasonic sensor cushion set as shown in the illustration.

0,0 0,0 false

Remove in this Direction
