SUPPLEMENTAL RESTRAINT SYSTEMS REAR AIRBAG SENSOR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during side No. 2 airbag sensor removal/installation are shown below.
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven (for HV Model) Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (
202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
Learning completes when vehicle is driven (for Gasoline Model) Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System Perform steering sensor zero point calibration ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
PROCEDURE
1. PRECAUTION
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
-
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,
-
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,
- NOTICE:
-
After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
64490
2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,
- CAUTION:
- for NR Series:·
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- except NR Series:·
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
4.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)
71940A
5.REMOVE REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type with Removable Headrest)
73350C
6.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)
7.REMOVE REAR SEATBACK ASSEMBLY LH (for Fold Down Seat Type LH Side)
8.REMOVE REAR SEATBACK ASSEMBLY RH (for Fold Down Seat Type RH Side)
9.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)
for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0042,
for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,
72693
10.REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)
67918A
11.REMOVE REAR DOOR SCUFF PLATE
76974F
12.REMOVE REAR UNDER SIDE COVER (for HV Model)
62332A
13.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
- HINT:
-
Disconnect the rear door opening trim weatherstrip to the extent that allows the removal of the rear seat side garnish.
62552F
14.REMOVE REAR SEAT SIDE GARNISH
89831B
15.REMOVE SIDE NO. 2 AIRBAG SENSOR
Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
- CAUTION:
- for NR Series:·
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- except NR Series:·
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
Disconnect the connector from the side No. 2 airbag sensor.
- NOTICE:
-
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
for Type A:

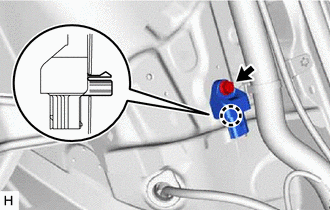

Remove the bolt and disengage the claw to remove the side No. 2 airbag sensor.
for Type B:

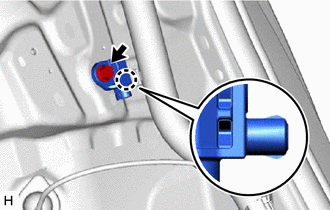

Remove the bolt and disengage the claw to remove the side No. 2 airbag sensor.
