The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door lock with motor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
·
Front door glass sub-assembly ·
Front door glass run ·
Front door inner glass weatherstrip |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
( 202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
·
Front door glass sub-assembly ·
Front door glass run ·
Front door inner glass weatherstrip |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
for NR Series Engine Initialization:( 202304,999999,_59,_080745,_0600092,RM100000002BB4K,)
except NR Series Engine Registration:( 202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
for HV Model:
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Front Camera System | Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. | ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
|
for Gasoline Model:
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
|
| Pre-collision System | Perform steering sensor zero point calibration | ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
|
| Lane Tracing Assist System | ||
| Front Camera System | Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. | ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
|
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1. PRECAUTION
After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
64490
2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,
M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,
69284F
4.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
74640E
5.REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY
6.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
7.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
67602
8.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
67664C
9.REMOVE DOOR UPPER FRAME GARNISH
67838D
10.REMOVE FRONT DOOR VENT SEAL
67832
11.REMOVE FRONT DOOR SERVICE HOLE COVER
68102
12.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
68151D
13.REMOVE FRONT DOOR GLASS RUN
67404F
14.REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
69220
15.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
16.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
69040A

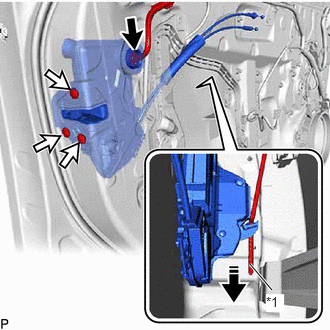

17.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
| *1 | Front Door Lock Open Rod |
|
Remove in this Direction |
Disconnect the connector.
Using a T30 "TORX" socket wrench, remove the 3 screws.
Slide the front door lock with motor assembly downward as shown in the illustration to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.

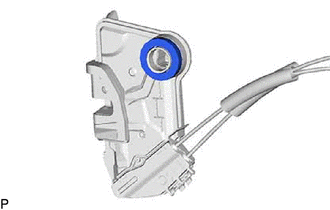

When reusing the front door lock with motor assembly:
Remove the door lock wiring harness seal from the front door lock with motor assembly.
69036A

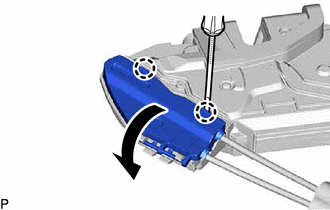

18.REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY
Using a screwdriver, disengage the 2 claws as shown in the illustration.

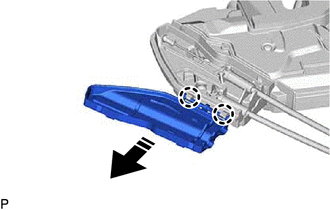

for GTMC Made NR Series Engine:
|
Remove in this Direction |
Disengage the 2 claws to remove the front door lock cover sub-assembly as shown in the illustration.

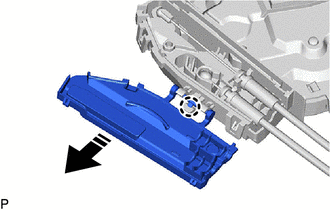

except GTMC Made NR Series Engine:
|
Remove in this Direction |
Disengage the claw to remove the front door lock cover sub-assembly as shown in the illustration.
69720D

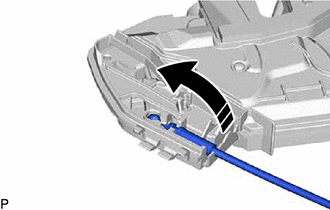

19.REMOVE FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE
|
Remove in this Direction |
Remove the front door lock open lever remote control cable as shown in the illustration.
69760B

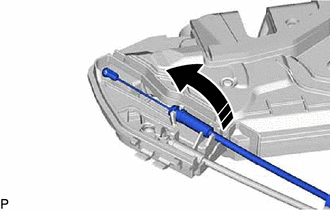

20.REMOVE FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE
|
Remove in this Direction |
Remove the front door inside lock/unlock knob locking cable as shown in the illustration.
