PARK ASSIST / MONITORING PANORAMIC VIEW MONITOR SYSTEM TERMINALS OF ECU

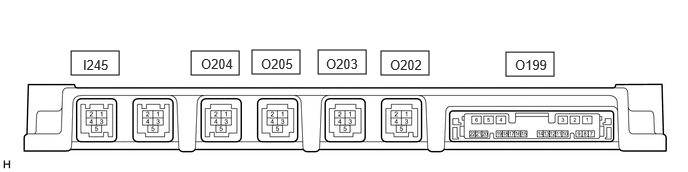

PARKING ASSIST ECU
5.271,0.542 5.771,0.792
0.5,0.25
3.313,0.521 3.813,0.771
0.5,0.25
3.969,0.531 4.469,0.781
0.5,0.25
1.99,0.531 2.49,0.781
0.5,0.25
2.625,0.521 3.125,0.771
0.5,0.25
0.74,0.531 1.24,0.781
0.5,0.25
5.365,0.594 5.823,0.792
0.458,0.198
10
false
O199
4.063,0.594 4.521,0.792
0.458,0.198
10
false
O202
3.396,0.583 3.854,0.781
0.458,0.198
10
false
O203
2.094,0.583 2.552,0.781
0.458,0.198
10
false
O204
2.719,0.583 3.177,0.781
0.458,0.198
10
false
O205
0.865,0.594 1.323,0.792
0.458,0.198
10
false
I245
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| O199-1 (+B) - Body ground | Power source signal | Ignition switch off | 11 to 14 V |
| O199-2 (IG) - Body ground | IG power source signal | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| O199-4 (GND1) - Body ground | Ground | Always | Below 1 Ω |
| O199-7 (REV) - Body ground | Reverse signal input | READY ON, shift position in R | 11 to 14 V |
| READY ON, shift position not in R | Below 1 V | ||
| O199-10 (RSW+) - Body ground | Terminal required by law | Panoramic image being displayed | 6 V or higher |
| Panoramic image not being displayed | Below 2 V | ||
| O199-11 (BLSW) - Body ground | Panoramic view monitor switch signal | Ignition switch ON, panoramic view monitor switch off | 6 V or higher |
| Ignition switch ON, panoramic view monitor switch on | Below 1 V | ||
| O199-12 (CANH) | CAN communication line | - | - |
| O199-13 (CANL) | CAN communication line | - | - |
| O202-1 (BCB+) - O202-2 (BGND) | Power source to front television camera | Ignition switch ON | 7.5 to 8.5 V |
| O202-2 (BGND) - Body ground | Front television camera assembly display ground | Always | Below 1 Ω |
| O202-3 (BCV+) - O202-4 (BCV-) | Front television camera assembly display signal input | - | - |
| O202-4 (BCV-) - Body ground | Front television camera assembly display ground | Always | 10 kΩ or higher |
| O202-5 (SGND) - Body ground | Front television camera assembly ground (shield) | Always | Below 1 Ω |
| O203-1 (RCB+) - O203-2 (RGND) | Power source to side television camera assembly RH | Ignition switch ON | 7.5 to 8.5 V |
| O203-2 (RGND) - Body ground | Side television camera assembly RH display ground | Always | Below 1 Ω |
| O203-3 (RCV+) - O203-4 (RCV-) | Side television camera assembly RH display signal input | - | - |
| O203-4 (RCV-) - Body ground | Side television camera assembly RH display ground | Always | 10 kΩ or higher |
| O203-5 (SGND) - Body ground | Side television camera assembly RH ground (shield) | Always | Below 1 Ω |
| O205-1 (LCB+) - O205-2 (LGND) | Power source to side television camera assembly LH | Ignition switch ON | 7.5 to 8.5 V |
| O205-2 (LGND) - Body ground | Side television camera assembly LH ground | Always | Below 1 Ω |
| O205-3 (LCV+) - O205-4 (LCV-) | Side television camera assembly LH display signal input | - | - |
| O205-4 (LCV-) - Body ground | Side television camera assembly LH display ground | Always | 10 kΩ or higher |
| O205-5 (SGND) - Body ground | Side television camera assembly LH ground (shield) | Always | Below 1 Ω |
| O204-1 (CB+) - O204-2 (CGND) | Power source to rear television camera assembly | Ignition switch ON | 7.5 to 8.5 V |
| O204-2 (CGND) - Body ground | Rear television camera assembly ground | Always | Below 1 Ω |
| O204-3 (CV+) - O204-4 (CV-) | Rear television camera assembly display signal input | - | - |
| O204-4 (CV-) - Body ground | Rear television camera assembly display ground | Always | 10 kΩ or higher |
| O204-5 (SGND) - Body ground | Rear television camera assembly ground (shield) | Always | Below 1 Ω |
| I245-1 (GB+) - I245-2 (GGND) | Power source to parking assist ECU | Ignition switch ON | 7.5 to 9.0 V |
| I245-2 (GGND) - Body ground | Radio and display receiver assembly ground | Always | Below 1 Ω |
| I245-3 (GVO+) | Radio and display receiver assembly display signal | - | - |
| I245-4 (GVO-) | Radio and display receiver assembly ground | - | - |
| I245-5 (SGND) - Body ground | Radio and display receiver assembly ground (shield) | Always | Below 1 Ω |
RADIO AND DISPLAY RECEIVER ASSEMBLY
