DOOR / HATCH HOOD LOCK CONTROL CABLE ASSEMBLY REMOVAL
PROCEDURE
1.REMOVE FRONT WHEEL LH
53289A
2.REMOVE RADIATOR SUPPORT OPENING COVER (for TFTM Made)
for Gasoline Model:
for HV Model:
53289A
3.REMOVE RADIATOR SUPPORT OPENING COVER (for GTMC Made)
for Gasoline Model:
for HV Model:
17751
4.REMOVE INLET NO. 1 AIR CLEANER (w/ Engine Hood Courtesy Switch)
for NR Series:
for M15B-FKS:
for M15C-FKS:
for M20A-FKS:
for M20C-FKS:
for M20E-FKS:
for M20F-FXS, M20G-FXS:
53876A
5.REMOVE FRONT FENDER LINER LH

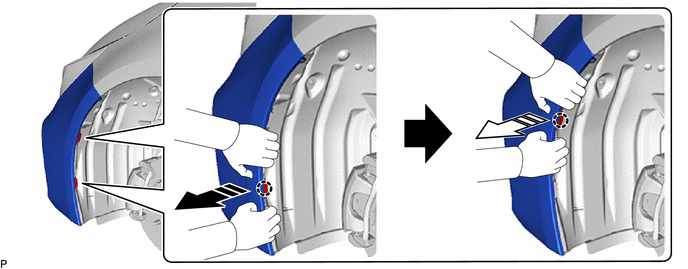

As shown in the illustration, pull the front bumper assembly horizontally to release each claws and disengage the front fender liner retainer.
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |

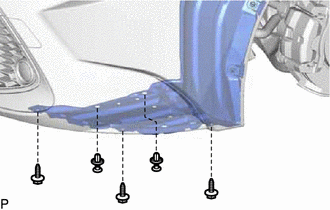

Remove the 3 screws and 2 clips.

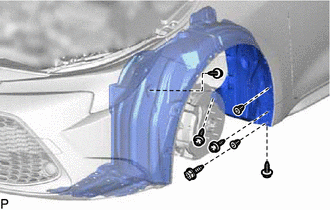

Remove the 5 screws and 2 grommets.

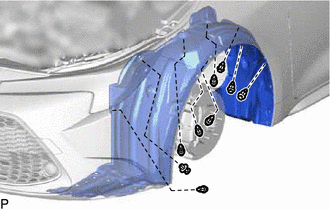

Remove the 9 clips and front fender liner LH.
6.REMOVE HEADLIGHT ASSEMBLY LH (for GTMC Made)
53510
7.REMOVE HOOD LOCK ASSEMBLY
w/ Engine Hood Courtesy Switch:

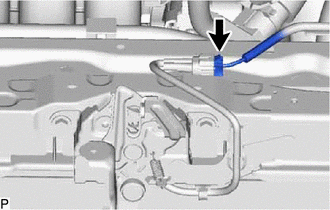

Disconnect the connector.

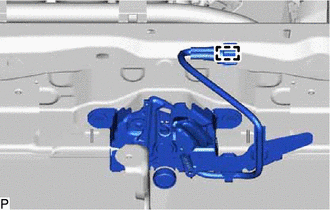

Disengage the clamp.
| *a | Protective Tape |
Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.
| *1 | Hood Lock Bolt |
Remove the 2 bolts and hood lock bolt.

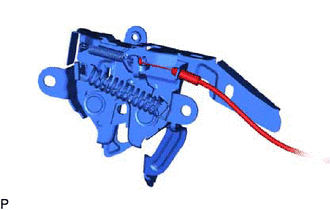

Disconnect the hood lock control cable assembly to remove the hood lock assembly.
67914
8.REMOVE FRONT DOOR SCUFF PLATE LH
62112A
9.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
55606
10.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
53601

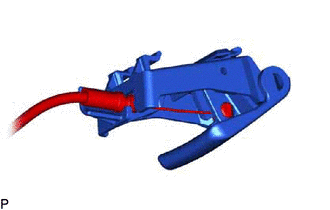

11.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
53630
12.REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

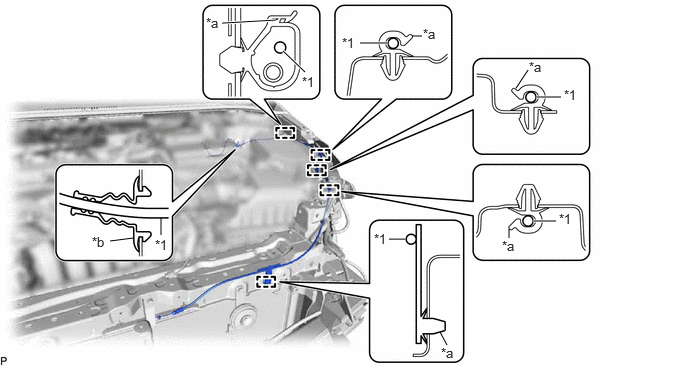

Using a screwdriver, disengage each clamp and the grommet as shown in the illustration.
| *1 | Hood Lock Control Cable Assembly | - | - |
| *a | Clamp | *b | Grommet |
- HINT:
-
Tape the screwdriver tip before use.
Pull the hood lock control cable assembly from the engine compartment to remove it.
