HEATING / AIR CONDITIONING  COOLER EXPANSION VALVE  INSTALLATION

88515 1.INSTALL COOLER EXPANSION VALVE

a.

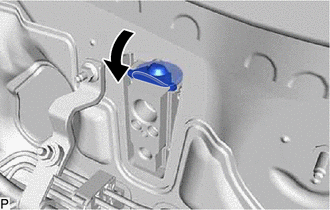

Remove the vinyl tape from the No. 1 cooler evaporator sub-assembly.

b.

Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the cooler expansion valve.

for HV Model:

Compressor Oil (ND-OIL 11 or equivalent)

for Gasoline Model:

Compressor Oil (ND-OIL 8 or equivalent)

c.

Install the 2 O-rings to the No. 1 cooler evaporator sub-assembly.

NOTICE:

Keep the O-rings and O-ring fitting surfaces free of foreign matter.

d.

Temporarily install the cooler expansion valve to the No. 1 cooler evaporator sub-assembly.

e.

Install the cooling unit parts to the original position as shown in the illustration.

f.

Using a 4 mm hexagon socket wrench, install the cooler expansion valve with the 2 hexagon bolts.

Torque:

3.5 N*m (36 kgf*cm, 31 in.*lbf)

88716A 2.CONNECT COOLER REFRIGERANT LIQUID PIPE A (except M20F-FXS, M20G-FXS)

88707 3.CONNECT SUCTION PIPE SUB-ASSEMBLY (except M20F-FXS, M20G-FXS)

88710E 4.CONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY (for M20F-FXS, M20G-FXS)

88707B 5.CONNECT SUCTION TUBE SUB-ASSEMBLY B (for M20F-FXS, M20G-FXS)

55701J 6.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

55737B 7.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

8.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

9.CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

10.WARM UP COMPRESSOR (for HV Model)

11.WARM UP ENGINE (for Gasoline Model)

12.INSPECT FOR REFRIGERANT LEAK
