MIRROR (EXT) OUTER REAR VIEW MIRROR COVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during outer mirror hole cover removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
· Side television camera assembly LH* · Side television camera assembly RH*	Side television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH · Rear television camera assembly	Television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 87961 1.REMOVE OUTER MIRROR

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>REMOVAL202304,999999,_59,_080794,_0393001,RM100000002B0QZ_01_0009,

Hide Display 2.REMOVE OUTER MIRROR COVER WITH OUTER MIRROR HOLE COVER (for GTMC Made)

0,0 0,0 false

	Place Hand Here
	Pull in this Direction

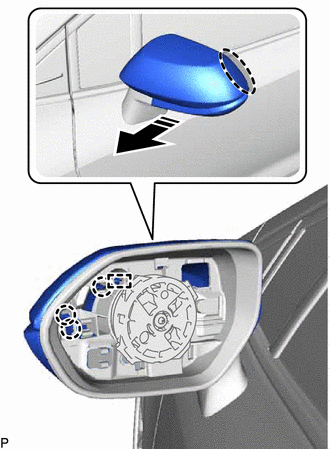

Pull the outer mirror cover with outer mirror hole cover as shown in the illustration to disengage the 3 claws and guide.

NOTICE:: As the claws and guide may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

0,0 0,0 false

	Place Hand Here
	Pull in this Direction

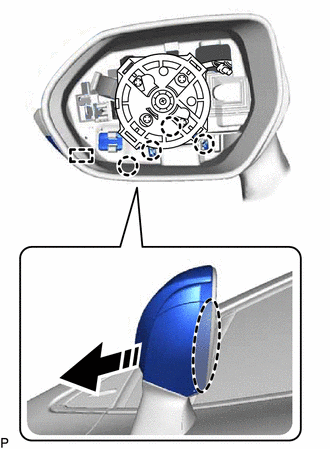

Pull the outer mirror cover with outer mirror hole cover as shown in the illustration to disengage the 4 claws and guide.

NOTICE:: As the claws and guide may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

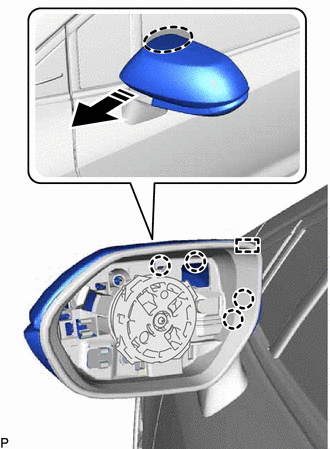

Pull the outer mirror cover with outer mirror hole cover as shown in the illustration to disengage the 4 claws and guide and remove it.

NOTICE:: As the claws and guides may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Hide Display 87945 3.REMOVE OUTER MIRROR COVER (for GTMC Made)

0,0 0,0 false

Remove in this Direction

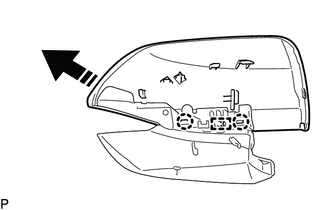

Disengage the 2 claws and guide to remove the outer mirror cover as shown in the illustration.

Hide Display 87945 4.REMOVE OUTER MIRROR COVER (for TFTM Made)

0,0 0,0 false

	Place Hand Here
	Pull in this Direction

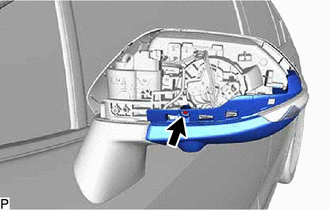

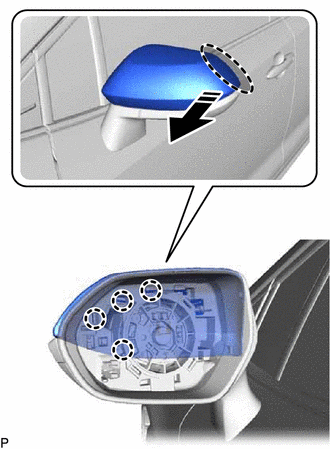

Pull the outer mirror cover as shown in the illustration to disengage the 4 claws.

NOTICE:: As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

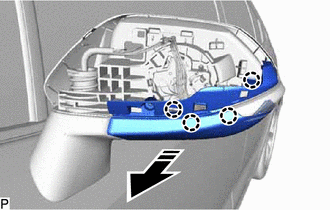

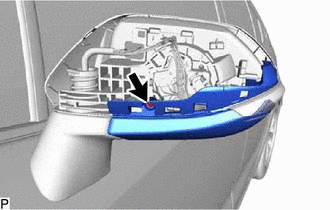

Pull the outer mirror cover as shown in the illustration to disengage the 4 claws and remove it.

NOTICE:: As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Hide Display 5.REMOVE NO. 2 OUTER MIRROR COVER (for TFTM Made without Panoramic View Monitor System)

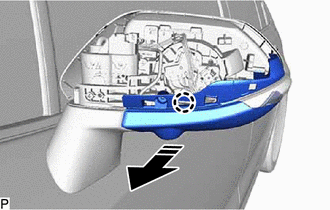

Remove the screw.

0,0 0,0 false

Remove in this Direction

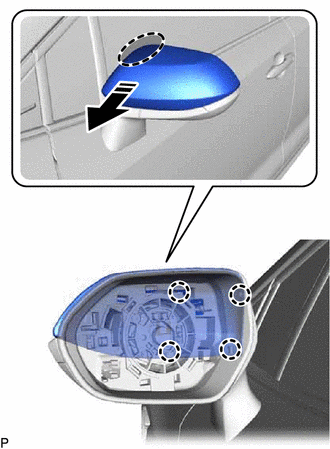

Disengage the 4 claws as shown in the illustration to remove the No. 2 outer mirror cover.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Hide Display 6.REMOVE OUTER MIRROR HOLE COVER WITH TELEVISION CAMERA (for TFTM Made with Panoramic View Monitor System)

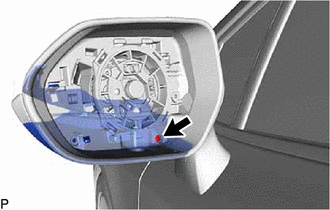

Remove the screw.

Remove the screw.

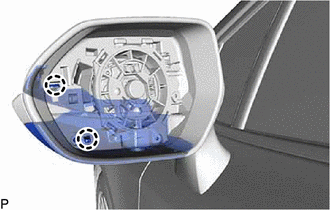

Disengage the 2 claws.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

0,0 0,0 false

Remove in this Direction

Disengage the claw as shown in the illustration.

HINT:: If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

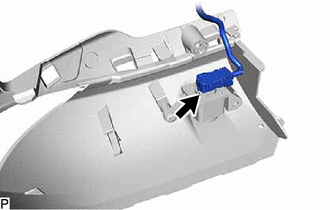

Disconnect the connector to remove the outer mirror hole cover with television camera.

Hide Display 86790F 7.REMOVE SIDE TELEVISION CAMERA ASSEMBLY (for TFTM Made with Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Side)>REMOVAL202307,999999,_56,_080754,_0611031,RM100000002CHWX_03_0021,
