HEATING / AIR CONDITIONING AIR CONDITIONING AMPLIFIER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air conditioning amplifier assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Air conditioning amplifier assembly (for Gasoline Model)	1. Reset air conditioning information 2. Learning air conditioning information	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)

PROCEDURE

Hide Display 78110K 1.REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

for NR Series Engine:

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL201906,999999,_51,_080777,_0392338,RM100000001HQ1Y,

for 8ZR-FXE, M20F-FXS, M20G-FXS:

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>ACCELERATOR PEDAL SENSOR>REMOVAL201906,999999,_51,_080773,_0392181,RM100000001HONI,

for M15B-FKS:

Click hereEngine / Hybrid System>M15B-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202101,999999,_51,_096196,_0456247,RM100000001TNIZ,

for M15C-FKS:

Click hereEngine / Hybrid System>M15C-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202101,999999,_51,_096205,_0456263,RM100000001TNKN,

for M20A-FKS:

Click hereEngine / Hybrid System>M20A-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202104,999999,_51,_101144,_0470280,RM100000001VLOT,

for M20C-FKS:

Click hereEngine / Hybrid System>M20C-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202107,999999,_51,_105190,_0481178,RM100000001WW89,

for M20E-FKS:

Click hereEngine / Hybrid System>M20E-FKS (ENGINE CONTROL)>ACCELERATOR PEDAL>REMOVAL202104,999999,_51,_101153,_0477098,RM100000001WF8L,

Hide Display 88650N 2.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

a.

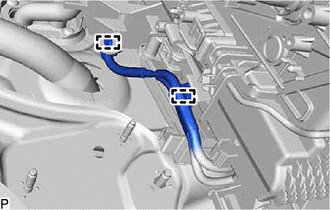

E400638

Disengage the 2 clamps.

b.

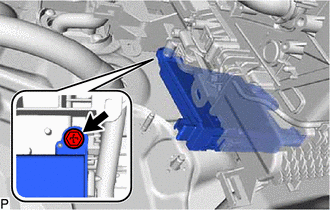

E400639

Remove the screw.

c.

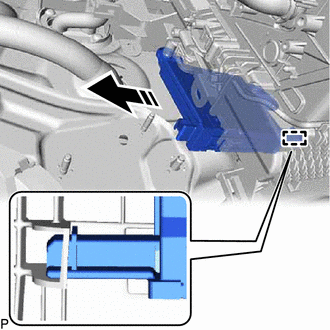

E400640C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage the guide as shown in the illustration.

d.

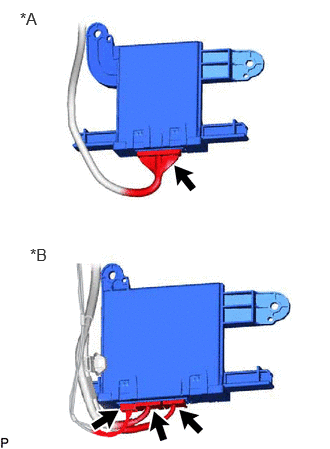

E418623C02

0.208,0.094 0.552,0.375 0.344,0.281 12 false *A 0.313,2.552 0.677,2.823 0.365,0.271 12 false *B

*A	for Manual Air Conditioning System
*B	for Automatic Air Conditioning System

Disconnect each connector to remove the air conditioning amplifier assembly.
