NR Series COOLING WATER PUMP REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 2.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 27020 3.REMOVE GENERATOR ASSEMBLY

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>GENERATOR>REMOVAL202304,999999,_57,_080760,_0392371,RM100000002BCFU,

Hide Display 16620 4.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0353,

Hide Display 5.REMOVE ENGINE WATER PUMP ASSEMBLY

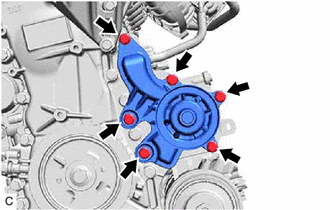

Remove the 6 bolts and engine water pump assembly from the timing chain cover assembly.

Remove the water pump gasket from the engine water pump assembly.
