NR Series BATTERY / CHARGING GENERATOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during generator assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

Hide Display 53289A 3.REMOVE RADIATOR SUPPORT OPENING COVER

·

for TFTM Made

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0020,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0020,

·

for GTMC Made

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202304,202307,_59,_080736,_0392547,RM100000002AXCM_01_0020,202307,999999,_59,_080736,_0392547,RM100000002CHFA_01_0020,

Hide Display 17751 4.REMOVE INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>REMOVAL201906,999999,_51,_080776,_0392641,RM100000001HRWA_02_0042,

Hide Display 5.REMOVE V-RIBBED BELT

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>DRIVE BELT>REMOVAL201906,999999,_51,_080739,_0391930,RM100000001HN1V,

Hide Display 27020 6.REMOVE GENERATOR ASSEMBLY

a.

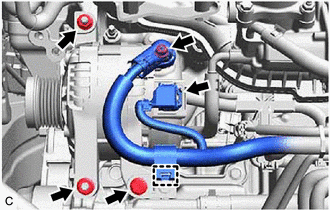

A429988

Remove the terminal cap.

b.

Remove the nut and disconnect the wire harness from terminal B.

c.

Disconnect the generator assembly connector.

d.

Disengage the wire harness clamp.

e.

Remove the bolt and 2 nuts.

f.

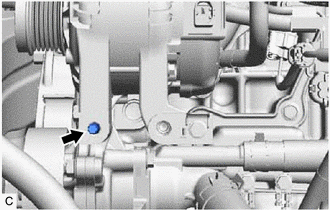

A429989

Using an E8 "TORX" socket wrench, remove the stud bolt.

g.

Remove the generator assembly.

h.

A351882

Remove the bolt and wire harness clamp bracket from the generator assembly.
