RM3660EC _51 Engine / Hybrid System _080777 NR Series ENGINE CONTROL _0392345 KNOCK SENSOR A

NR Series ENGINE CONTROL KNOCK SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of knock control sensor	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 27020 1.REMOVE GENERATOR ASSEMBLY

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>GENERATOR>REMOVAL202304,999999,_57,_080760,_0392371,RM100000002BCFU,

Hide Display 89615 2.REMOVE KNOCK CONTROL SENSOR

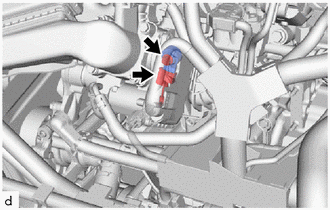

Remove the bolt and separate the No. 4 engine wire.

Disconnect the knock control sensor connector.

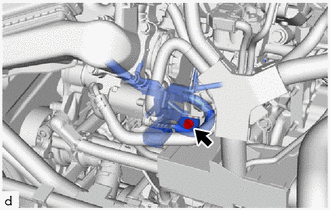

Remove the bolt and knock control sensor from the cylinder block sub-assembly.

NOTICE:: If the knock control sensor has been struck or dropped, replace it.
