RM3660EC _52 Drivetrain _080786 AXLE AND DIFFERENTIAL _0392698 FRONT AXLE HUB A

AXLE AND DIFFERENTIAL FRONT AXLE HUB INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 43502C 1.INSTALL FRONT AXLE HUB SUB-ASSEMBLY

Secure the steering knuckle between aluminum plates in a vise.

NOTICE:: Do not overtighten the vise.

Install the front axle hub sub-assembly and front disc brake dust cover to the steering knuckle with the 3 bolts.

Torque:: 130 N*m (1326 kgf*cm, 96 ft.*lbf)

NOTICE:: ·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.

Hide Display 2.INSTALL FRONT AXLE ASSEMBLY

0,0 0,0 false

Toyota Body Grease W

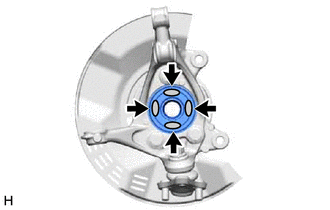

Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.

Install the front axle assembly to the front shock absorber assembly with the 2 bolts and 2 nuts.

Torque:: 270 N*m (2753 kgf*cm, 199 ft.*lbf)

NOTICE:: ·

Do not apply lubricants to the steering knuckle and shock absorber contact surfaces.

·

When installing the nuts, keep the bolts from rotating.

HINT:: The bolts can be installed in either direction, however, make sure that they are both installed in the same direction.

Hide Display 43420 3.INSTALL FRONT DRIVE SHAFT ASSEMBLY

2.875,1.073 3.083,1.073 true 2.76,0.792 3.083,0.792 3.083,0.792 3.083,1.833 true 3.01,1.844 3.323,2 0.313,0.156 10 false *a

Matchmark

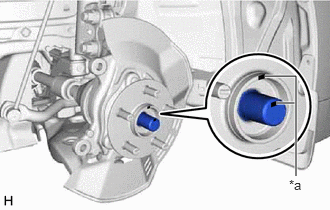

Align the matchmarks on the front drive shaft assembly and front axle hub sub-assembly, and connect the front drive shaft assembly to the front axle assembly.

NOTICE:: ·

Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

·

Check that there is no foreign matter on the speed sensor rotor or contact surfaces.

·

Do not damage the front drive shaft outboard joint boot.

·

Do not damage the front disc brake dust cover.

·

Do not damage the speed sensor rotor.

Hide Display 48069 4.CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Connect the front lower No. 1 suspension arm sub-assembly to the front lower ball joint assembly with the bolt and 2 nuts.

Torque:: 89 N*m (908 kgf*cm, 66 ft.*lbf)

Hide Display 45047 5.CONNECT TIE ROD END SUB-ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>INSTALLATION202304,202307,_55,_080765,_0392687,RM100000002BA83_01_0161,202307,999999,_55,_080765,_0392687,RM100000002CQYY_01_0161,

Hide Display 43512 6.INSTALL FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>INSTALLATION202304,202307,_54,_080772,_0392389,RM100000002AVCM_01_0001,202307,999999,_54,_080772,_0392389,RM100000002COH0_01_0001,

Hide Display 7.INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT202304,202307,_52,_080786,_0392697,RM100000002BA5C_01_0019,202307,999999,_52,_080786,_0392697,RM100000002CW4P_01_0019,

Hide Display 43502H 8.INSTALL FRONT AXLE SHAFT NUT

Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.

NOTICE:: ·

Be sure to perform this work even when using a new front drive shaft assembly.

·

Keep the threaded parts free of oil and foreign matter.

Using a 30 mm deep socket wrench, while applying the brakes, temporarily install the front axle shaft nut.

Torque:: 216 N*m (2203 kgf*cm, 159 ft.*lbf)

NOTICE:: Stake the front axle shaft nut after inspecting for looseness and runout in the following steps.

HINT:: Keep depressing the brake pedal to prevent the front drive shaft from rotating.

Hide Display 9.SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT202304,202307,_52,_080786,_0392697,RM100000002BA5C_01_0018,202307,999999,_52,_080786,_0392697,RM100000002CW4P_01_0018,

Hide Display 43512 10.REMOVE FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>REMOVAL202304,202307,_54,_080772,_0392389,RM100000002AVCL_01_0020,202307,999999,_54,_080772,_0392389,RM100000002COGZ_01_0020,

Hide Display 11.INSPECT FRONT AXLE HUB BEARING LOOSENESS

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB>ON-VEHICLE INSPECTION202304,202307,_52,_080786,_0392698,RM100000002BA5H_01_0004,202307,999999,_52,_080786,_0392698,RM100000002CW4Y_01_0004,

Hide Display 12.INSPECT FRONT AXLE HUB RUNOUT

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB>ON-VEHICLE INSPECTION202304,202307,_52,_080786,_0392698,RM100000002BA5H_01_0005,202307,999999,_52,_080786,_0392698,RM100000002CW4Y_01_0005,

Hide Display 43512 13.INSTALL FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>INSTALLATION202304,202307,_54,_080772,_0392389,RM100000002AVCM_01_0001,202307,999999,_54,_080772,_0392389,RM100000002COH0_01_0001,

Hide Display 14.INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT202304,202307,_52,_080786,_0392697,RM100000002BA5C_01_0019,202307,999999,_52,_080786,_0392697,RM100000002CW4P_01_0019,

Hide Display 89543 15.INSTALL FRONT SPEED SENSOR

0,0 0,0 false

Hook

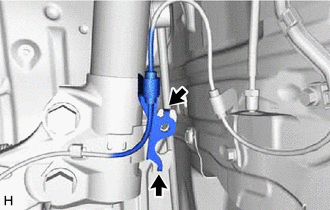

Set the 2 hooks of front speed sensor to the front shock absorber assembly.

NOTICE:: Do not twist the front speed sensor when installing it.

Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.

Torque:: 29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:: Do not twist the front flexible hose when installing it.

Install the front speed sensor to the steering knuckle with the bolt.

Torque:: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:: ·

Prevent foreign matter from attaching to the front speed sensor tip.

·

Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

·

After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.

·

Do not twist the front speed sensor when installing it.

Engage the clamp.

NOTICE:: Do not twist the front speed sensor when installing it.

Hide Display 43502H 16.STAKE FRONT AXLE SHAFT NUT

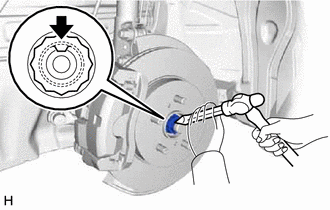

Using a chisel and hammer, stake the front axle shaft nut.

Hide Display 17.INSTALL FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION202304,202307,_V1,_080956,_0392691,RM100000002B9S7_01_0001,202307,999999,_V1,_080956,_0392691,RM100000002CWKE_01_0001,

Hide Display 18.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT202304,202307,_53,_080763,_0392675,RM100000002AYX9,202307,999999,_53,_080763,_0392675,RM100000002CWH8,

Hide Display 19.CHECK FOR SPEED SENSOR SIGNAL

for HV Model: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>TEST MODE PROCEDURE202304,999999,_54,_080770,_0392591,RM100000002B670,

for Gasoline Model (NR Series): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>TEST MODE PROCEDURE202304,999999,_54,_080770,_0599814,RM100000002BA8E,

for Gasoline Model (except NR Series): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (except NR Series))>TEST MODE PROCEDURE202304,999999,_54,_080770,_0599811,RM100000002B9YL,
