LIGHTING (EXT) AUTOMATIC LIGHT CONTROL SENSOR INSTALLATION
PROCEDURE
89120A
1.INSTALL AUTOMATIC LIGHT CONTROL SENSOR
|

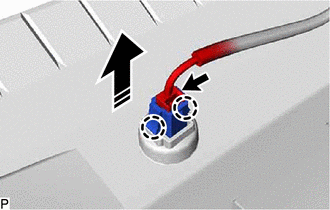

Install in this Direction |
Engage the 2 claws to install the automatic light control sensor as shown in the illustration.
Connect the connector.
55300
2.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY (w/ Upper Instrument Panel)
55473B
3.INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL (w/ Upper Instrument Panel)
62211
4.INSTALL FRONT PILLAR GARNISH RH (w/ Upper Instrument Panel)
- HINT:
-
Use the same procedure as for the LH side.
62311B
5.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH (w/ Upper Instrument Panel)
55472C
6.INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL (w/ Upper Instrument Panel)
62212
7.INSTALL FRONT PILLAR GARNISH LH (w/ Upper Instrument Panel)
62312B
8.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH (w/ Upper Instrument Panel)
9.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/o Upper Instrument Panel)
