SEAT  LUMBAR SUPPORT ADJUSTER ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during lumbar support adjuster assembly LH removal/installation are shown below.

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 72760D 10.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

a.
B535053

Disconnect the 2 connectors.


b.

Disengage the clamp.


c.
B534299

Disengage the 2 claws to remove the 2 front No. 2 seatback edge protectors.


d.

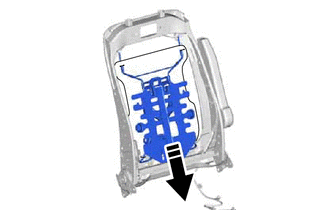

B536626C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the lumbar support adjuster assembly LH as shown in the illustration.


Hide 11.REMOVE FRONT SEATBACK FELT LH

a.

Remove the front seatback felt LH from the lumbar support adjuster assembly LH.


Hide 71588 12.REMOVE FRONT NO. 2 SEATBACK EDGE PROTECTOR

a.

Remove the 2 front No. 2 seatback edge protectors from the lumbar support adjuster assembly LH.
