RM3660EC _54 Brake _080740 PARKING BRAKE _0392901 ELECTRIC PARKING BRAKE SWITCH A

PARKING BRAKE ELECTRIC PARKING BRAKE SWITCH REMOVAL

PROCEDURE

Hide Display 1. PRECAUTION

Hide Display 2.REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Hide Display 84390B 3.REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

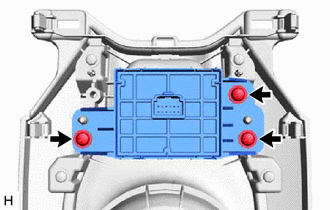

for NR Series:

Remove the 4 screws and electric parking brake switch assembly.

except NR Series:

Remove the 3 screws and electric parking brake switch assembly.
