Vehicle Interior
_080733
HEATING / AIR CONDITIONING
_0597811
ION GENERATOR
A
HEATING / AIR CONDITIONING ION GENERATOR INSTALLATION
PROCEDURE
88051A
1.INSTALL ION GENERATOR SUB-ASSEMBLY
a.
Install the ion generator sub-assembly to the No. 1 ion generator bracket with the 3 screws.
87201N
2.INSTALL AIR DUCT SUB-ASSEMBLY
a.
0,0 0,0
false
|

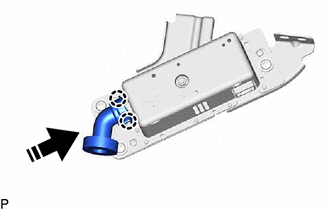

Install in this Direction |
Engage the 2 claws as shown in the illustration to install the air duct sub-assembly.
3.INSTALL ION GENERATOR WITH BRACKET
a.
Engage the 2 guides.
b.
Install the ion generator with bracket with the 2 screws.
88905
4.INSTALL NO. 1 AIR PURIFIER WIRE SUB-ASSEMBLY
a.
Engage the guide.
b.
Connect the connector to install the No. 1 air purifier wire sub-assembly.
55085
5.INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY
6.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
