The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during brake booster assembly removal/installation are shown below.
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
|
| Pre-collision System | Perform steering sensor zero point calibration | ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
|
| Lane Tracing Assist System | ||
| Front Camera System | Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. | ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
|
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
47201
1.REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY
2.REMOVE BATTERY
for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX,
51410
3.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
for NR Series Engine: Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,
for M15B-FKS: Click hereEngine / Hybrid System>M15B-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096197,_0454892,RM100000002BBF0_01_0306,
for M15C-FKS: Click hereEngine / Hybrid System>M15C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096206,_0454902,RM100000002BBQC_01_0306,
for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0306,
for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0306,
for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0306,
55225C
4.REMOVE DASH PANEL HEAT INSULATOR
for NR Series Engine: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL202304,202307,_54,_080770,_0392396,RM100000002BDDO_01_0054,202307,999999,_54,_080770,_0392396,RM100000002CWCG_01_0054,
except NR Series Engine: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL202304,202307,_54,_080770,_0392396,RM100000002BDDO_01_0064,202307,999999,_54,_080770,_0392396,RM100000002CWCG_01_0064,
44772

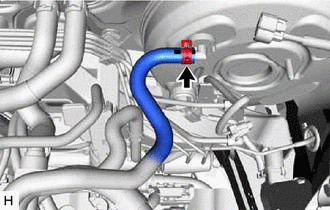

5.DISCONNECT CHECK VALVE TO CONNECTOR TUBE HOSE (for NR Series Engine)
Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.
44772

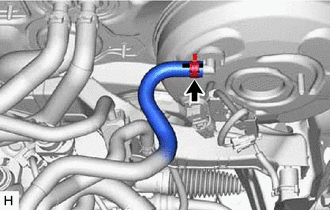

6.DISCONNECT CHECK VALVE TO CONNECTOR TUBE HOSE (except NR Series Engine)
Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.
55606
7.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

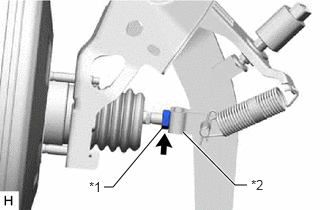

8.LOOSEN LOCK NUT
| *1 | Lock Nut |
| *2 | Brake Master Cylinder Push Rod Clevis |
Loosen the lock nut of the brake master cylinder push rod clevis.
47101A
9.REMOVE BRAKE PEDAL RETURN SPRING
47264A
10.REMOVE PUSH ROD PIN
44610
11.REMOVE BRAKE BOOSTER ASSEMBLY
|

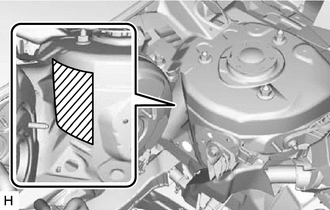

Protective Tape |
Apply protective tape to the vehicle body as shown in the illustration.
Disengage the 5 clamps to remove the No. 2 brake tube clamp from the brake lines.
Disengage the clamp and remove the No. 2 brake tube clamp from the vehicle body.
Disengage the 5 clamps to remove the No. 1 brake tube clamp from the brake lines.

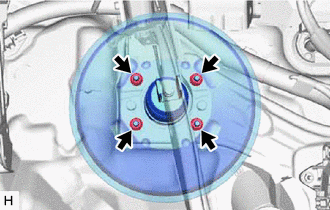

Remove the 4 nuts.
Do not apply excessive force to the brake lines.
Remove the brake master cylinder push rod clevis and lock nut from the brake booster assembly.
Remove the brake booster assembly from the vehicle body.
Do not apply excessive force to the brake lines.
44785D
12.REMOVE BRAKE BOOSTER GASKET
Remove the brake booster gasket from the brake booster assembly.
