RM3660EC _58 Vehicle Interior _080741 SUPPLEMENTAL RESTRAINT SYSTEMS _0392905 FRONT PASSENGER AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  INSTALLATION


PROCEDURE

Hide 82142A 1.INSTALL NO. 2 INSTRUMENT PANEL WIRE (for NR Series Engine)

a.

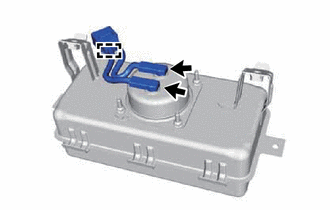

B682088

Connect the 2 airbag connectors of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.

NOTICE:
·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Be sure to only connect the connectors to each corresponding color.



HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



b.

Engage the clamp.


Hide 82142A 2.INSTALL NO. 2 INSTRUMENT PANEL WIRE (except NR Series Engine)

a.

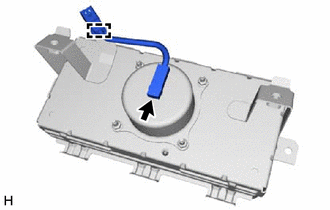

B682085

Connect the airbag connector of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



b.

Engage the clamp.


Hide 73960A 3.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (for NR Series Engine)

a.

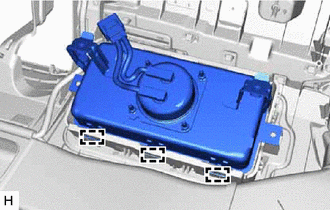

B533814

Engage the 3 hooks.


b.

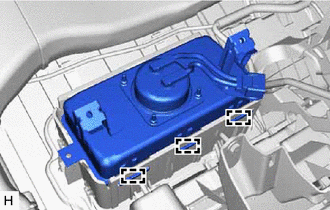

B533817

Push in the instrument panel passenger airbag assembly to engage the 3 hooks.


c.

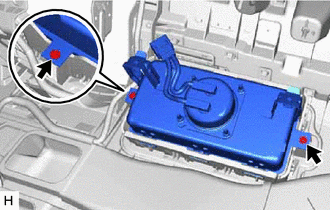

B533812

Install the instrument panel passenger airbag assembly with the 2 screws.


Hide 73960A 4.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (except NR Series Engine)

a.

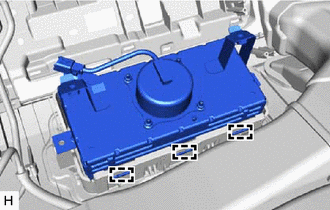

B682084

Engage the 3 hooks.


b.

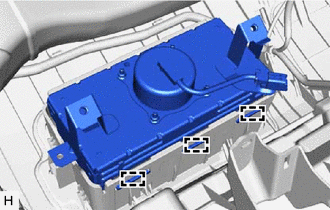

B682086

Push in the instrument panel passenger airbag assembly to engage the 3 hooks.


c.

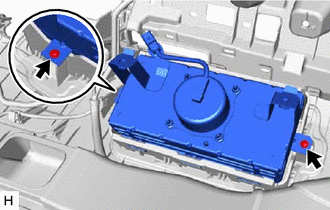

B682082

Install the instrument panel passenger airbag assembly with the 2 screws.


Hide 82142A 6.CONNECT NO. 2 INSTRUMENT PANEL WIRE

a.

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
for NR Series:
·
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


except NR Series:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.




c.

for NR Series Engine:

i.

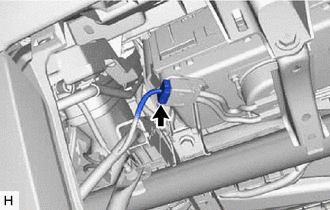

B533811

Connect the connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




d.

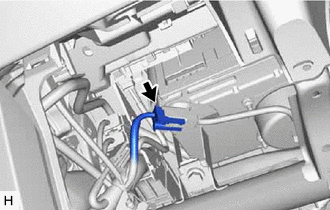

B520863

except NR Series Engine:

i.

Connect the connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




Hide 55300 7.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY (w/ Upper Instrument Panel)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION
