RM3660EC _58 Vehicle Interior _080732 SEAT _0391519 POWER SEAT SWITCH A

SEAT POWER SEAT SWITCH INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 84922C 1.INSTALL FRONT POWER SEAT SWITCH

for Driver Side:

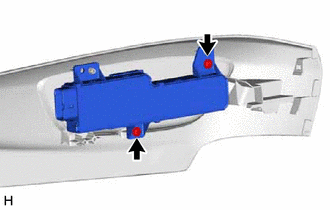

Install the front power seat switch to the front seat cushion shield with the 2 screws.

for Front Passenger Side:

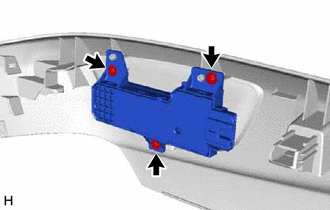

Install the front power seat switch to the front seat cushion shield with the 3 screws.

Hide Display 72714 2.INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

Hide Display 84921A 3.INSTALL RECLINING POWER SEAT SWITCH KNOB

Hide Display 84921B 4.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Hide Display 71812D 5.INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

Hide Display 71812D 6.INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)

Hide Display 71868N 7.INSTALL FRONT SEAT FRONT CUSHION SHIELD

Hide Display 71074S 8.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Hide Display 9.INSTALL FRONT SEAT ASSEMBLY
