EXTERIOR PANELS / TRIM  REAR BUMPER(for GTMC Made)  REASSEMBLY


PROCEDURE

Hide 1.INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

a.
B545552
0,0 0,0 false
V113147

Install in this Direction

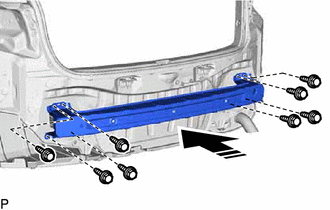

Install the rear bumper reinforcement sub-assembly with the 8 bolts as shown in the illustration.

Torque:
18 N*m (184 kgf*cm, 13 ft.*lbf)


Hide 52576 2.INSTALL REAR BUMPER SIDE RETAINER LH

a.
B545550
0,0 0,0 false
V113147

Install in this Direction

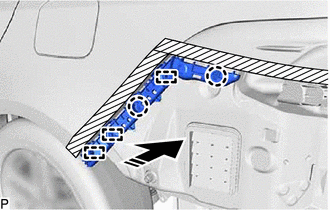

Engage the 3 guides and 2 claws as shown in the illustration.


b.
B545548

Install the rear bumper side retainer LH with the 2 screws.


Hide 52575 3.INSTALL REAR BUMPER SIDE RETAINER RH

HINT:

Use the same procedure as for the LH side.


Hide 52563A 4.INSTALL NO. 3 REAR BUMPER FILLER RETAINER

a.

Install the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>INSTALLATION


b.
B545554

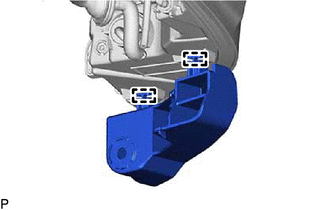

Engage the 2 guides to temporarily install the No. 3 rear bumper filler retainer to the rear combination light assembly LH.


c.
B545555
0.646,1.646 0.917,1.313 true 0.646,2.063 1.042,1.583 true 0.552,1.656 0.781,1.844 0.229,0.188 10 true *b 0.542,2.063 0.75,2.25 0.208,0.188 10 true *a 2.854,1.448 3.01,1.646 0.156,0.198 10 true A 2.958,1.99 3.115,2.188 0.156,0.198 10 false A 1.969,2.823 2.125,3.021 0.156,0.198 10 true B
*a Pin
*b Guide
V113147

Install in this Direction

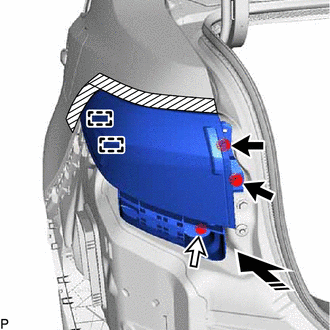

Engage the guide and pin as shown in the illustration to temporarily install the No. 3 rear bumper filler retainer and rear combination light assembly LH as a set.


d.

Install the rear combination light assembly LH with the 2 screws (A).


e.

Install the No. 3 rear bumper filler retainer with the screw (B).


Hide 52562B 5.INSTALL NO. 2 REAR BUMPER FILLER RETAINER

HINT:

Use the same procedure as for the No. 3 rear bumper filler retainer.


Hide 52592 6.INSTALL REAR BUMPER SIDE SEAL LH

a.
B536274

Install the rear bumper side seal LH with the 3 clips.


Hide 52591 7.INSTALL REAR BUMPER SIDE SEAL RH

HINT:

Use the same procedure as for the LH side.


Hide 81920 8.INSTALL REFLEX REFLECTOR ASSEMBLY LH

a.
B536272

Engage the claw.


b.

Install the reflex reflector assembly LH with the screw.


Hide 81910 9.INSTALL REFLEX REFLECTOR ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.


Hide 52169C 10.INSTALL REAR BUMPER LOWER COVER (except Sport Package)

a.

Engage the 12 claws.

B671885


b.
B671884

Install the rear bumper lower cover with the 2 screws.


Hide 52169C 11.INSTALL REAR BUMPER LOWER COVER (for Sport Package)

a.

for LEVIN:

i.

Engage the 12 claws.

B685465


ii.
B685464

Install the rear bumper lower cover with the 2 screws.



Hide 52751 12.INSTALL REAR BUMPER MOULDING (for Sport Package)

a.

for LEVIN GT:

i.

Engage the guide and 14 claws.

B620024


ii.

Install the rear bumper moulding with the 5 screws.



Hide 13.INSTALL REAR BUMPER SUB-ASSEMBLY (for Sport Package)

a.

for LEVIN GT:

i.

Engage the 12 claws.

B620023


ii.

Install the rear bumper sub-assembly with the 2 screws.



Hide 52161B 14.INSTALL REAR BUMPER PIECE (except Sport Package)

a.
B536267
1.479,1.563 1.896,1.729 true 1.917,1.635 2.125,1.823 0.208,0.188 10 true *a
*a Hook


Engage the hook.


b.

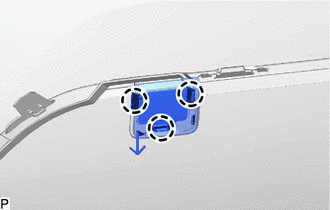

Engage the 3 claws to install the rear bumper piece.

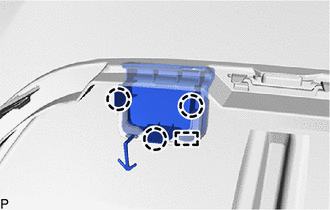

Hide 52161B 15.INSTALL REAR BUMPER PIECE (for Sport Package)

a.
B685463
1.333,1.667 1.667,1.667 true 1.719,1.583 1.917,1.792 0.198,0.208 10 true *a
*a Hook


for LEVIN:

i.

Engage the hook.


ii.

Engage the guide and 3 claws to install the rear bumper piece.



Hide 52161B 16.INSTALL REAR BUMPER PIECE (for Sport Package)

a.
B620022
1.333,1.583 1.75,1.75 true 1.781,1.698 1.99,1.885 0.208,0.188 10 true *a
*a Hook


for LEVIN GT:

i.

Engage the hook.


ii.

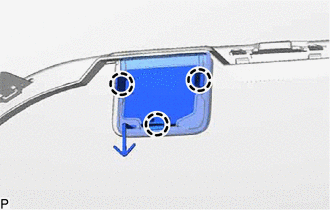

Engage the 3 claws to install the rear bumper piece.



Hide 52461F 17.INSTALL REAR BUMPER PAD

HINT:

When installing the rear bumper pad, heat the rear bumper cover using a heat light.


Heating Temperature
Item Temperature
Rear Bumper Cover 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear bumper cover excessively.


a.

Clean the rear bumper cover surface.

i.

Using a heat light, heat the rear bumper cover surface.


ii.

Remove any remaining double-sided tape from the rear bumper cover.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Remove the release paper from 3 new rear bumper pads.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.

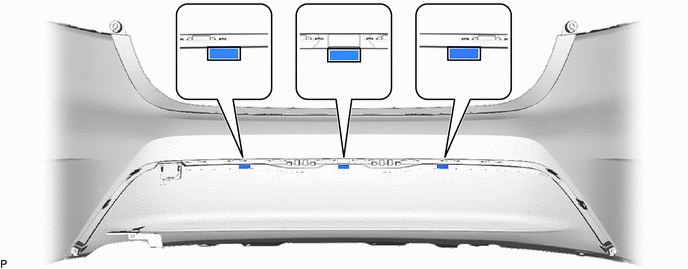

Install the 3 rear bumper pads as shown in the illustration.

B685466
2.344,0.792 2.323,0.635 false 3.573,0.792 3.594,0.646 false 4.823,0.771 4.844,0.625 false 2.313,0.792 2.625,0.99 0.313,0.198 10 false *a 3.5,0.781 3.813,0.979 0.313,0.198 10 false *a 4.75,0.771 5.063,0.969 0.313,0.198 10 false *a
*a Line - -


HINT:

Install the rear bumper pads along the line on the rear bumper cover.



Hide 52462B 18.INSTALL REAR BUMPER PAD

HINT:

When installing the rear bumper pad, heat the rear bumper cover using a heat light.


Heating Temperature
Item Temperature
Rear Bumper Cover 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear bumper cover excessively.


a.

Clean the rear bumper cover surface.

i.

Using a heat light, heat the rear bumper cover surface.


ii.

Remove any remaining double-sided tape from the rear bumper cover.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Remove the release paper from a new rear bumper pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.
B585680
1.896,1.083 2.281,1.219 true 2.302,1.146 2.5,1.333 0.198,0.188 10 true *a
*a Line

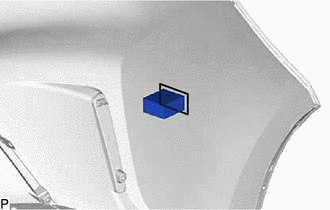

Install the rear bumper pad as shown in the illustration.

HINT:

Install the rear bumper pad along the line on the rear bumper cover.
