RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393160 REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made) A

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81560 1.INSTALL REAR COMBINATION LIGHT ASSEMBLY

a.

Engage the grommet.


b.

Connect the connector.


c.

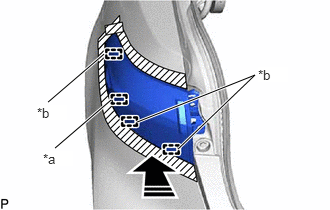

E412102C01
1.854,1.552 2.656,0.781 2.656,0.781 1.427,1.271 true 1.156,1.042 0.573,1.542 true 1.083,0.563 0.5,1.063 true 0.448,1.573 0.76,1.729 0.313,0.156 10 true *a 0.385,1.094 0.698,1.25 0.313,0.156 10 true *b 2.688,0.698 3,0.854 0.313,0.156 10 true *b
*a Pin
*b Guide
V113147

Install in this Direction


Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.


d.

Install the rear combination light assembly with the 2 screws.


e.

Remove the protective tape.


f.

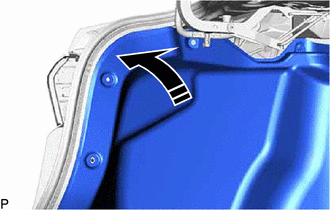

E419582C01
0,0 0,0 false
V113147

Install in this Direction


Return the luggage compartment trim cover assembly to the original position as shown in the illustration.


g.

Install the luggage compartment trim cover assembly with the 3 clips.


Hide 81498 2.INSTALL REAR COMBINATION LIGHT COVER

a.

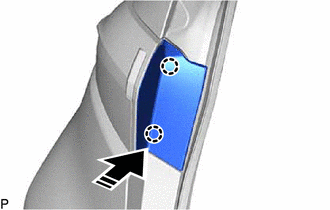

E418558C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.


b.

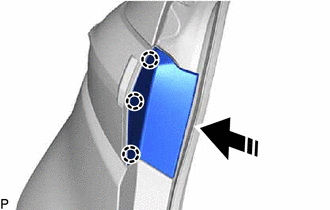

E412097C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 claws to install the rear combination light cover as shown in the illustration.
