RM3660EC _58 Vehicle Interior _080732 SEAT _0394196 REAR SEAT ASSEMBLY(for Fold Down Seat Type) A

SEAT  REAR SEAT ASSEMBLY(for Fold Down Seat Type)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71075B 1.INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for Gasoline Model)

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

Engage the 16 claws.

B517548

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



b.

for Type A:

i.

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 24 new hog rings in the order indicated in the illustration.

B552636N01
3.5,1.365 3.698,1.573 0.198,0.208 10 true 1 3.188,1.333 3.385,1.542 0.198,0.208 10 true 2 3.792,1.323 3.99,1.531 0.198,0.208 10 true 3 3.438,0.563 3.635,0.771 0.198,0.208 10 true 4 2.625,0.74 2.823,0.948 0.198,0.208 10 true 5 4.323,0.719 4.563,0.906 0.24,0.188 10 true 6 2.24,0.031 2.479,0.219 0.24,0.188 10 true 7 4.667,0.052 4.906,0.24 0.24,0.188 10 true 8 2.594,0.25 2.833,0.438 0.24,0.188 10 true 9 4.323,0.24 4.563,0.427 0.24,0.188 10 true 10 3.26,2.188 3.5,2.375 0.24,0.188 10 true 11 3.802,2.208 4.042,2.396 0.24,0.188 10 true 12 2.667,2.198 2.906,2.385 0.24,0.188 10 true 13 4.271,2.208 4.51,2.396 0.24,0.188 10 true 14 2.156,2.073 2.396,2.26 0.24,0.188 10 true 15 4.75,2.063 4.99,2.25 0.24,0.188 10 true 16 1.542,1.906 1.781,2.094 0.24,0.188 10 true 17 5.406,1.885 5.646,2.073 0.24,0.188 10 true 18 1.208,1.333 1.448,1.521 0.24,0.188 10 true 19 5.677,1.344 5.917,1.531 0.24,0.188 10 true 20 1.417,1.052 1.656,1.24 0.24,0.188 10 true 21 5.458,1.042 5.698,1.229 0.24,0.188 10 true 22 1.448,0.604 1.688,0.792 0.24,0.188 10 true 23 5.438,0.604 5.677,0.792 0.24,0.188 10 true 24

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 11 new hog rings in the order indicated in the illustration.

B552632N01
3.438,0.594 3.594,0.792 0.156,0.198 10 true 1 2.292,0.521 2.552,0.729 0.26,0.208 10 true 10 4.646,0.479 4.875,0.677 0.229,0.198 10 true 11 3.281,1.729 3.438,1.927 0.156,0.198 10 true 2 3.833,1.688 3.99,1.885 0.156,0.198 10 true 3 2.219,1.615 2.375,1.813 0.156,0.198 10 true 4 4.802,1.583 4.958,1.781 0.156,0.198 10 true 5 1.75,0.823 1.906,1.021 0.156,0.198 10 true 8 5.24,0.813 5.396,1.01 0.156,0.198 10 true 9 1.76,1.51 1.917,1.708 0.156,0.198 10 true 6 5.25,1.5 5.406,1.698 0.156,0.198 10 true 7

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





c.

for Type B:

i.

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 22 new hog rings in the order indicated in the illustration.

B679854N01
3.594,0.938 3.813,1.135 0.219,0.198 10 true 1 3.75,0.438 3.969,0.635 0.219,0.198 10 true 2 3.073,0.938 3.292,1.135 0.219,0.198 10 true 3 2.521,0.708 2.74,0.896 0.219,0.188 10 true 5 4.458,0.74 4.677,0.927 0.219,0.188 10 true 6 2.313,0.146 2.531,0.333 0.219,0.188 10 true 7 4.656,0.156 4.875,0.344 0.219,0.188 10 true 8 3.146,1.76 3.365,1.948 0.219,0.188 10 true 9 3.802,1.75 4.021,1.938 0.219,0.188 10 true 10 2.458,1.74 2.677,1.927 0.219,0.188 10 true 11 4.5,1.75 4.719,1.938 0.219,0.188 10 true 12 2.052,1.698 2.271,1.885 0.219,0.188 10 true 13 4.875,1.677 5.094,1.865 0.219,0.188 10 true 14 1.688,1.531 1.906,1.719 0.219,0.188 10 true 15 5.271,1.521 5.49,1.708 0.219,0.188 10 true 16 1.896,1.146 2.115,1.333 0.219,0.188 10 true 17 5.104,1.156 5.323,1.344 0.219,0.188 10 true 18 1.49,0.698 1.708,0.885 0.219,0.188 10 true 19 5.49,0.677 5.708,0.865 0.219,0.188 10 true 20 3.99,0.927 4.208,1.125 0.219,0.198 10 true 4 5.302,0.427 5.521,0.615 0.219,0.188 10 true 22 1.667,0.458 1.885,0.646 0.219,0.188 10 true 21

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 11 new hog rings in the order indicated in the illustration.

B681462N01
3.5,0.49 3.656,0.688 0.156,0.198 10 true 1 2.458,0.438 2.615,0.635 0.156,0.198 10 true 2 4.573,0.427 4.729,0.625 0.156,0.198 10 true 3 3.198,1.542 3.354,1.74 0.156,0.198 10 true 4 3.813,1.552 3.969,1.75 0.156,0.198 10 true 5 2.583,1.531 2.74,1.729 0.156,0.198 10 true 6 4.417,1.531 4.573,1.729 0.156,0.198 10 true 7 1.833,1.333 1.99,1.531 0.156,0.198 10 true 8 5.188,1.313 5.344,1.51 0.156,0.198 10 true 9 2.094,0.604 2.313,0.802 0.219,0.198 10 true 10 4.854,0.573 5.063,0.76 0.208,0.188 10 true 11

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





Hide 71075B 2.INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for HV Model)

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

Engage the 16 claws.

B517548

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



b.

for Type A:

i.

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 23 new hog rings in the order indicated in the illustration.

B552638N01
3.5,1.021 3.719,1.219 0.219,0.198 10 true 1 3.073,0.948 3.292,1.146 0.219,0.198 10 true 2 3.938,0.938 4.156,1.135 0.219,0.198 10 true 3 3.427,0.104 3.646,0.292 0.219,0.188 10 true 4 2.635,0.677 2.854,0.865 0.219,0.188 10 true 5 4.333,0.677 4.552,0.865 0.219,0.188 10 true 6 2.302,0.042 2.521,0.229 0.219,0.188 10 true 7 4.677,0.031 4.896,0.219 0.219,0.188 10 true 8 2.667,0.177 2.885,0.365 0.219,0.188 10 true 9 4.302,0.208 4.521,0.396 0.219,0.188 10 true 10 3.469,2.083 3.688,2.271 0.219,0.188 10 true 11 2.948,2.094 3.167,2.281 0.219,0.188 10 true 12 3.948,2.083 4.167,2.271 0.219,0.188 10 true 13 2.427,2.083 2.646,2.271 0.219,0.188 10 true 14 4.5,2.083 4.719,2.271 0.219,0.188 10 true 15 1.927,2.063 2.146,2.25 0.219,0.188 10 true 16 5.01,2.083 5.229,2.271 0.219,0.188 10 true 17 1.427,1.698 1.646,1.885 0.219,0.188 10 true 18 5.5,1.708 5.719,1.896 0.219,0.188 10 true 19 1.344,1.219 1.563,1.406 0.219,0.188 10 true 20 5.5,1.198 5.719,1.385 0.219,0.188 10 true 21 1.469,0.813 1.688,1 0.219,0.188 10 true 22 5.448,0.792 5.667,0.979 0.219,0.188 10 true 23

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 9 new hog rings in the order indicated in the illustration.

B550220N01
3.51,1.042 3.667,1.24 0.156,0.198 10 true 1 3.094,0.938 3.25,1.135 0.156,0.198 10 true 2 3.927,0.948 4.083,1.146 0.156,0.198 10 true 3 2.948,1.646 3.104,1.844 0.156,0.198 10 true 4 3.969,1.646 4.125,1.844 0.156,0.198 10 true 5 1.938,1.604 2.094,1.802 0.156,0.198 10 true 6 5,1.635 5.156,1.833 0.156,0.198 10 true 7 1.75,1 1.906,1.198 0.156,0.198 10 true 8 5.24,1.021 5.396,1.219 0.156,0.198 10 true 9

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





c.

for Type B:

i.

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 19 new hog rings in the order indicated in the illustration.

B679857N01
3.573,0.927 3.771,1.135 0.198,0.208 10 true 1 3.844,0.427 4.042,0.635 0.198,0.208 10 true 2 3.042,0.896 3.24,1.104 0.198,0.208 10 true 3 3.938,0.906 4.135,1.115 0.198,0.208 10 true 4 2.625,0.74 2.823,0.948 0.198,0.208 10 true 5 4.323,0.719 4.563,0.906 0.24,0.188 10 true 6 2.302,0.542 2.542,0.729 0.24,0.188 10 true 7 4.698,0.542 4.938,0.729 0.24,0.188 10 true 8 3.5,1.813 3.677,2.01 0.177,0.198 10 true 9 4.146,1.813 4.385,2 0.24,0.188 10 true 11 2.781,1.813 3.021,2 0.24,0.188 10 true 10 1.813,1.844 2.052,2.031 0.24,0.188 10 true 12 5.156,1.823 5.396,2.01 0.24,0.188 10 true 13 1.667,1.333 1.906,1.521 0.24,0.188 10 true 14 5.292,1.354 5.531,1.542 0.24,0.188 10 true 15 1.917,0.979 2.156,1.167 0.24,0.188 10 true 16 5.031,0.958 5.271,1.146 0.24,0.188 10 true 17 1.542,0.583 1.781,0.771 0.24,0.188 10 true 18 5.427,0.594 5.667,0.781 0.24,0.188 10 true 19

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 10 new hog rings in the order indicated in the illustration.

B681463N01
3.125,0.792 3.281,0.99 0.156,0.198 10 true 1 2.073,0.677 2.24,0.875 0.167,0.198 10 true 9 4.833,0.677 5.063,0.875 0.229,0.198 10 true 10 2.896,1.604 3.052,1.802 0.156,0.198 10 true 3 4.115,1.594 4.271,1.792 0.156,0.198 10 true 4 1.792,1.177 1.948,1.375 0.156,0.198 10 true 7 5.188,1.188 5.344,1.385 0.156,0.198 10 true 8 1.948,1.583 2.104,1.781 0.156,0.198 10 true 5 5.042,1.552 5.198,1.75 0.156,0.198 10 true 6 3.906,0.792 4.063,0.99 0.156,0.198 10 true 2

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





Hide 72640A 3.INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

a.

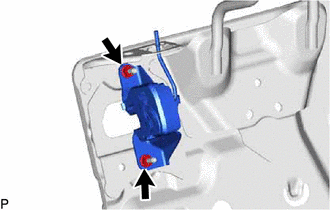

B534722

Install the rear seatback lock assembly LH with the 2 nuts.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)


Hide 72661C 4.INSTALL REAR SEATBACK LOCK RELEASE BUTTON (for LH Side)

a.

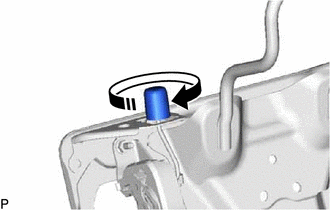

B534721C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear seatback lock release button clockwise and install it.


Hide 71078S 5.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

HINT:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

w/ Removable Headrest:

i.

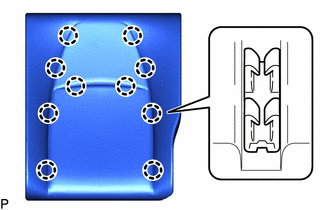

B517514

Engage the 10 claws to install the separate type rear seatback cover to the separate type rear seatback pad LH.

NOTICE:

Be careful not to damage the separate type rear seatback cover.




b.

w/ Non-removable Headrest:

i.

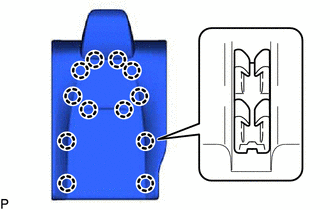

B534724

Engage the 12 claws to install the separate type rear seatback cover to the separate type rear seatback pad LH.

NOTICE:

Be careful not to damage the separate type rear seatback cover.




Hide 6.INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH (for LH Side)

a.

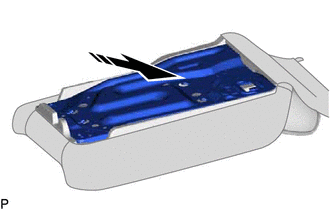

B534719C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear seatback frame sub-assembly LH to the separate type rear seatback cover with pad as shown in the illustration.


b.

w/ Removable Headrest:

i.

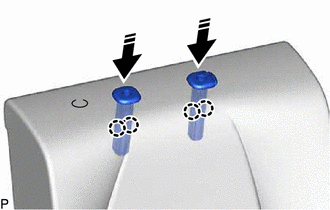

B534764C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the 2 rear seat headrest supports as shown in the illustration.



c.
B534716

Engage the 5 hooks.


d.

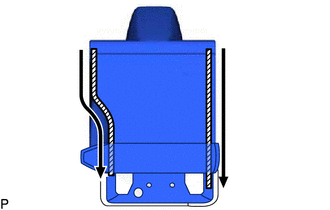

B534715C01
0,0 0,0 false
V100155

Fastener


Close the 2 fasteners as shown in the illustration.


e.

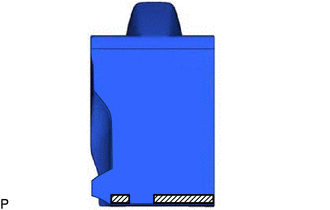

B534713C01
0,0 0,0 false
V100155

Fastener


Engage the 2 fasteners.


Hide 72646 7.INSTALL REAR SEATBACK STOP BUTTON GROMMET (for LH Side)

a.

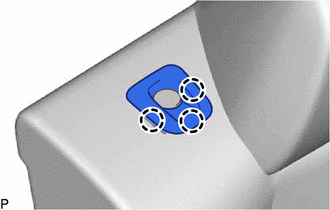

B534712

Engage the 3 claws to install the rear seatback stop button grommet.


Hide 72630C 8.INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

HINT:

Use the same procedure as for the LH side.


Hide 72661C 9.INSTALL REAR SEATBACK LOCK RELEASE BUTTON (for RH Side)

HINT:

Use the same procedure as for the LH side.


Hide 71077S 10.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side)

HINT:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

w/ Removable Headrest:

i.

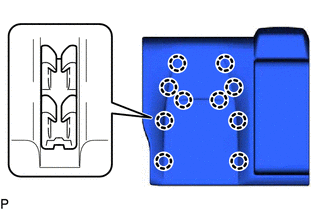

B546671

Engage the 10 claws.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



ii.

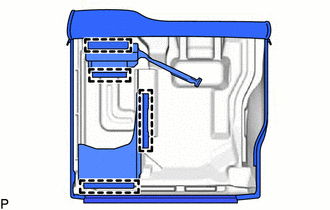

B546669

Engage the 4 hooks to install the separate type rear seatback cover to the separate type rear seatback pad RH.

NOTICE:

Be careful not to damage the separate type rear seatback cover.




b.

for Non-removable Headrest:

i.

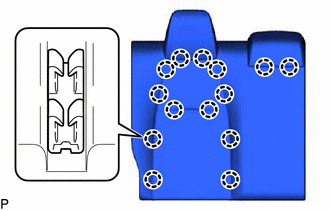

B534758

Engage the 14 claws and install the separate type rear seatback cover to the separate type rear seatback pad RH.

NOTICE:

Be careful not to damage the separate type rear seatback cover.




Hide 11.INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH (for RH Side)

a.

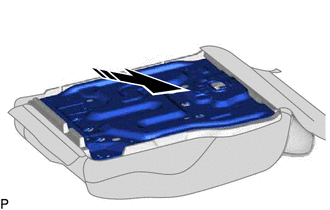

B534741C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear seatback frame sub-assembly RH to the separate type rear seatback cover with pad as shown in the illustration.


b.

w/ Removable Headrest:

i.

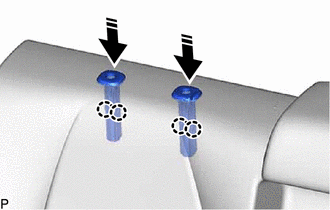

B534760C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 4 claws to install the 2 rear seat headrest supports as shown in the illustration.



c.

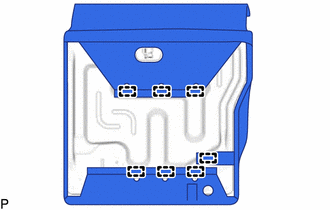

B547655

Engage the 7 hooks.


d.

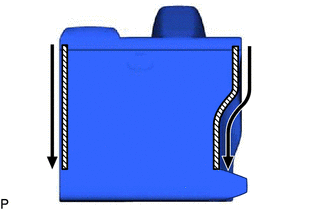

B534737C01
0,0 0,0 false
V100155

Fastener


Close the 2 fasteners as shown in the illustration.


e.

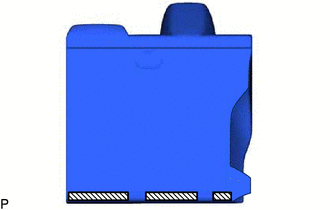

B534735C01
0,0 0,0 false
V100155

Fastener


Engage the 3 fasteners.


Hide 73345 12.INSTALL REAR SEAT CENTER SHOULDER BELT GUIDE (for RH Side)

a.

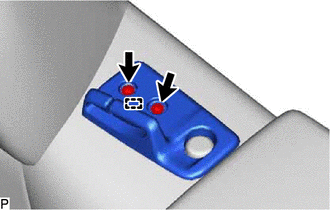

B534726

Engage the guide.


b.

Install the rear seat center shoulder belt guide with the 2 screws.


Hide 13.INSTALL REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY (for RH Side)

a.

for TFTM Made with Armrest:

i.
B547085

Engage the hook to install the rear seat center armrest cover sub-assembly to the rear seat center armrest pad.

NOTICE:

Be careful not to damage the rear seat center armrest cover sub-assembly.




Hide 72806D 14.INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side)

a.

w/ Armrest:

i.

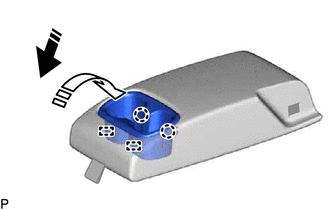

B534746C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 2 guides and 2 claws as shown in the illustration to install the rear seat center armrest cup holder sub-assembly.



Hide 71349C 15.INSTALL REAR SEATBACK HINGE COVER (for RH Side)

a.

w/ Armrest:

i.

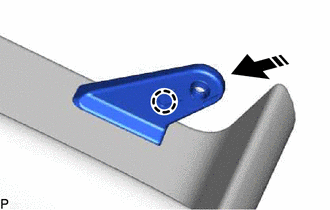

B534734C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw as shown in the illustration to install the rear seatback hinge cover.



Hide 72830 16.INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)

a.

w/ Armrest:

i.

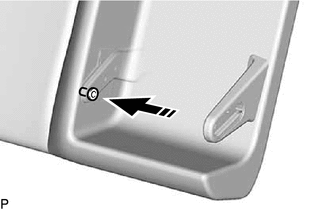

B546668C01
0,0 0,0 false
V113147

Install in this Direction


Install the bush as shown in the illustration.


ii.

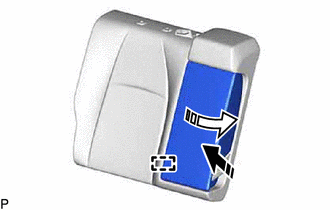

B546666C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the pin and temporarily install the rear seat center armrest assembly as shown in the illustration.


iii.

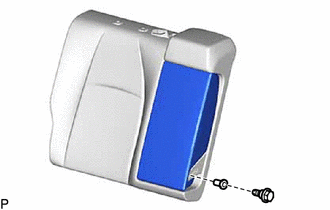

B546664

Install the rear seat center armrest assembly with the bush and bolt.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)



Hide 72848A 17.INSTALL NO. 1 SEAT ARMREST CAP (for RH Side)

a.

w/ Armrest:

i.

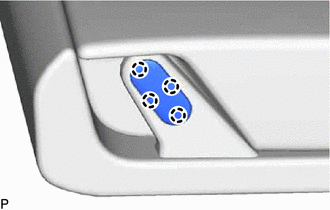

B534727

Engage the 4 claws to install the No. 1 seat armrest cap.
