RM3660EC _58 Vehicle Interior _080732 SEAT _0394195 REAR SEAT ASSEMBLY(for Fixed Seat Type) A

SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  REASSEMBLY


PROCEDURE

Hide 71075B 1.INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for Gasoline Model)

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

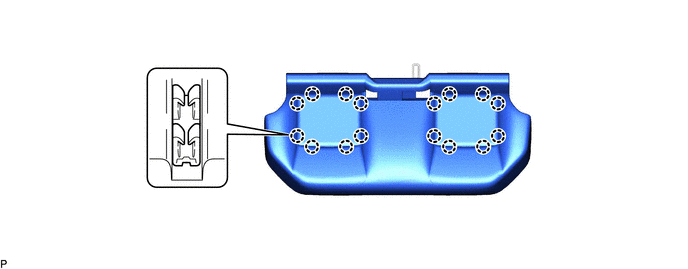

Engage the 16 claws.

B517548

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



b.

for Type A:

i.

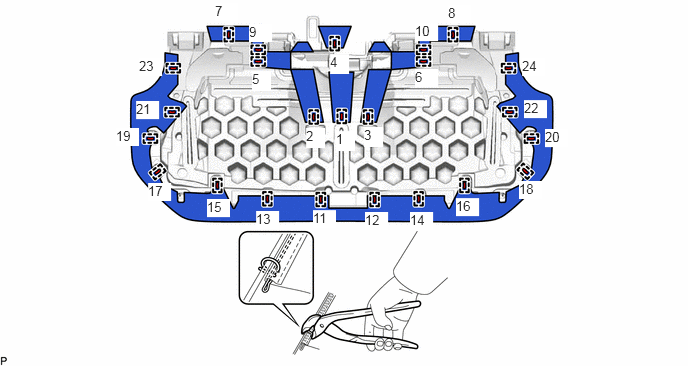

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 24 new hog rings in the order indicated in the illustration.

B552636N01
3.5,1.365 3.698,1.573 0.198,0.208 10 true 1 3.188,1.333 3.385,1.542 0.198,0.208 10 true 2 3.792,1.323 3.99,1.531 0.198,0.208 10 true 3 3.438,0.563 3.635,0.771 0.198,0.208 10 true 4 2.625,0.74 2.823,0.948 0.198,0.208 10 true 5 4.323,0.719 4.563,0.906 0.24,0.188 10 true 6 2.24,0.031 2.479,0.219 0.24,0.188 10 true 7 4.667,0.052 4.906,0.24 0.24,0.188 10 true 8 2.594,0.25 2.833,0.438 0.24,0.188 10 true 9 4.323,0.24 4.563,0.427 0.24,0.188 10 true 10 3.26,2.188 3.5,2.375 0.24,0.188 10 true 11 3.802,2.208 4.042,2.396 0.24,0.188 10 true 12 2.667,2.198 2.906,2.385 0.24,0.188 10 true 13 4.271,2.208 4.51,2.396 0.24,0.188 10 true 14 2.156,2.073 2.396,2.26 0.24,0.188 10 true 15 4.75,2.063 4.99,2.25 0.24,0.188 10 true 16 1.542,1.906 1.781,2.094 0.24,0.188 10 true 17 5.406,1.885 5.646,2.073 0.24,0.188 10 true 18 1.208,1.333 1.448,1.521 0.24,0.188 10 true 19 5.677,1.344 5.917,1.531 0.24,0.188 10 true 20 1.417,1.052 1.656,1.24 0.24,0.188 10 true 21 5.458,1.042 5.698,1.229 0.24,0.188 10 true 22 1.448,0.604 1.688,0.792 0.24,0.188 10 true 23 5.438,0.604 5.677,0.792 0.24,0.188 10 true 24

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

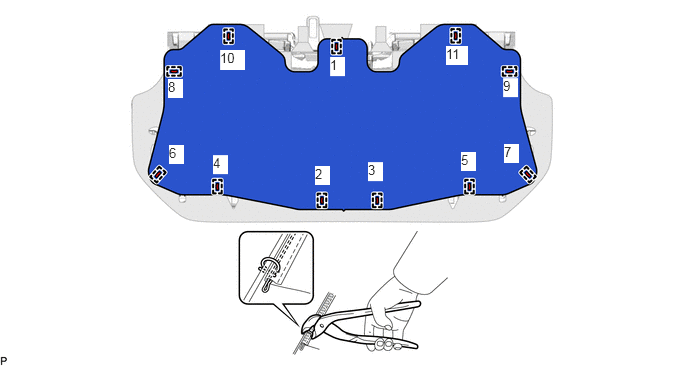

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 11 new hog rings in the order indicated in the illustration.

B552632N01
3.438,0.594 3.594,0.792 0.156,0.198 10 true 1 2.292,0.521 2.552,0.729 0.26,0.208 10 true 10 4.646,0.479 4.875,0.677 0.229,0.198 10 true 11 3.281,1.729 3.438,1.927 0.156,0.198 10 true 2 3.833,1.688 3.99,1.885 0.156,0.198 10 true 3 2.219,1.615 2.375,1.813 0.156,0.198 10 true 4 4.802,1.583 4.958,1.781 0.156,0.198 10 true 5 1.75,0.823 1.906,1.021 0.156,0.198 10 true 8 5.24,0.813 5.396,1.01 0.156,0.198 10 true 9 1.76,1.51 1.917,1.708 0.156,0.198 10 true 6 5.25,1.5 5.406,1.698 0.156,0.198 10 true 7

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





c.

for Type B:

i.

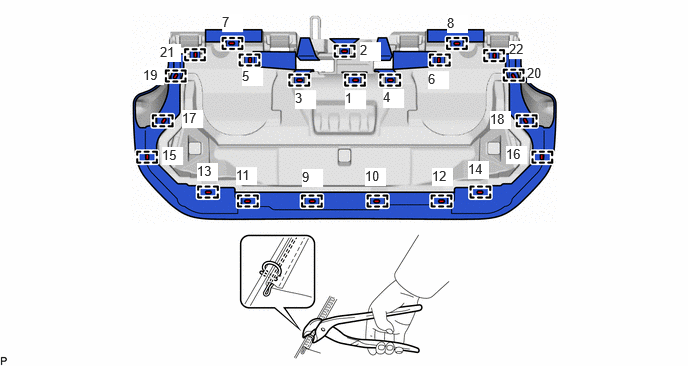

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 22 new hog rings in the order indicated in the illustration.

B679854N01
3.594,0.938 3.813,1.135 0.219,0.198 10 true 1 3.75,0.438 3.969,0.635 0.219,0.198 10 true 2 3.073,0.938 3.292,1.135 0.219,0.198 10 true 3 2.521,0.708 2.74,0.896 0.219,0.188 10 true 5 4.458,0.74 4.677,0.927 0.219,0.188 10 true 6 2.313,0.146 2.531,0.333 0.219,0.188 10 true 7 4.656,0.156 4.875,0.344 0.219,0.188 10 true 8 3.146,1.76 3.365,1.948 0.219,0.188 10 true 9 3.802,1.75 4.021,1.938 0.219,0.188 10 true 10 2.458,1.74 2.677,1.927 0.219,0.188 10 true 11 4.5,1.75 4.719,1.938 0.219,0.188 10 true 12 2.052,1.698 2.271,1.885 0.219,0.188 10 true 13 4.875,1.677 5.094,1.865 0.219,0.188 10 true 14 1.688,1.531 1.906,1.719 0.219,0.188 10 true 15 5.271,1.521 5.49,1.708 0.219,0.188 10 true 16 1.896,1.146 2.115,1.333 0.219,0.188 10 true 17 5.104,1.156 5.323,1.344 0.219,0.188 10 true 18 1.49,0.698 1.708,0.885 0.219,0.188 10 true 19 5.49,0.677 5.708,0.865 0.219,0.188 10 true 20 3.99,0.927 4.208,1.125 0.219,0.198 10 true 4 5.302,0.427 5.521,0.615 0.219,0.188 10 true 22 1.667,0.458 1.885,0.646 0.219,0.188 10 true 21

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 11 new hog rings in the order indicated in the illustration.

B681462N01
3.5,0.49 3.656,0.688 0.156,0.198 10 true 1 2.458,0.438 2.615,0.635 0.156,0.198 10 true 2 4.573,0.427 4.729,0.625 0.156,0.198 10 true 3 3.198,1.542 3.354,1.74 0.156,0.198 10 true 4 3.813,1.552 3.969,1.75 0.156,0.198 10 true 5 2.583,1.531 2.74,1.729 0.156,0.198 10 true 6 4.417,1.531 4.573,1.729 0.156,0.198 10 true 7 1.833,1.333 1.99,1.531 0.156,0.198 10 true 8 5.188,1.313 5.344,1.51 0.156,0.198 10 true 9 2.094,0.604 2.313,0.802 0.219,0.198 10 true 10 4.854,0.573 5.063,0.76 0.208,0.188 10 true 11

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





Hide 71075B 2.INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for HV Model)

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

Engage the 16 claws.

B517548

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.



b.

for Type A:

i.

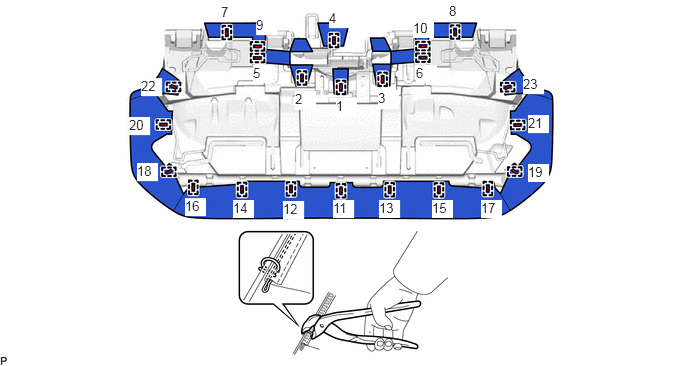

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 23 new hog rings in the order indicated in the illustration.

B552638N01
3.5,1.021 3.719,1.219 0.219,0.198 10 true 1 3.073,0.948 3.292,1.146 0.219,0.198 10 true 2 3.938,0.938 4.156,1.135 0.219,0.198 10 true 3 3.427,0.104 3.646,0.292 0.219,0.188 10 true 4 2.635,0.677 2.854,0.865 0.219,0.188 10 true 5 4.333,0.677 4.552,0.865 0.219,0.188 10 true 6 2.302,0.042 2.521,0.229 0.219,0.188 10 true 7 4.677,0.031 4.896,0.219 0.219,0.188 10 true 8 2.667,0.177 2.885,0.365 0.219,0.188 10 true 9 4.302,0.208 4.521,0.396 0.219,0.188 10 true 10 3.469,2.083 3.688,2.271 0.219,0.188 10 true 11 2.948,2.094 3.167,2.281 0.219,0.188 10 true 12 3.948,2.083 4.167,2.271 0.219,0.188 10 true 13 2.427,2.083 2.646,2.271 0.219,0.188 10 true 14 4.5,2.083 4.719,2.271 0.219,0.188 10 true 15 1.927,2.063 2.146,2.25 0.219,0.188 10 true 16 5.01,2.083 5.229,2.271 0.219,0.188 10 true 17 1.427,1.698 1.646,1.885 0.219,0.188 10 true 18 5.5,1.708 5.719,1.896 0.219,0.188 10 true 19 1.344,1.219 1.563,1.406 0.219,0.188 10 true 20 5.5,1.198 5.719,1.385 0.219,0.188 10 true 21 1.469,0.813 1.688,1 0.219,0.188 10 true 22 5.448,0.792 5.667,0.979 0.219,0.188 10 true 23

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

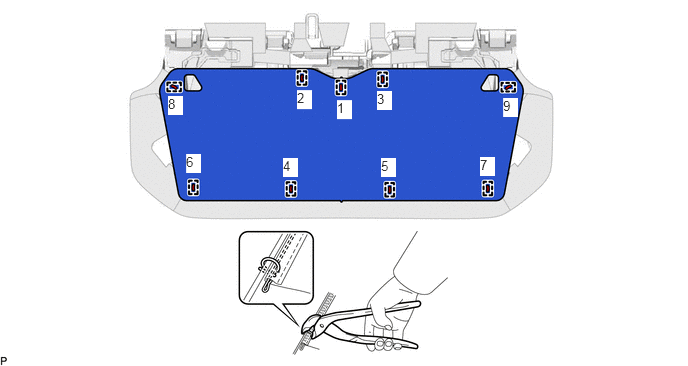

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 9 new hog rings in the order indicated in the illustration.

B550220N01
3.51,1.042 3.667,1.24 0.156,0.198 10 true 1 3.094,0.938 3.25,1.135 0.156,0.198 10 true 2 3.927,0.948 4.083,1.146 0.156,0.198 10 true 3 2.948,1.646 3.104,1.844 0.156,0.198 10 true 4 3.969,1.646 4.125,1.844 0.156,0.198 10 true 5 1.938,1.604 2.094,1.802 0.156,0.198 10 true 6 5,1.635 5.156,1.833 0.156,0.198 10 true 7 1.75,1 1.906,1.198 0.156,0.198 10 true 8 5.24,1.021 5.396,1.219 0.156,0.198 10 true 9

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





c.

for Type B:

i.

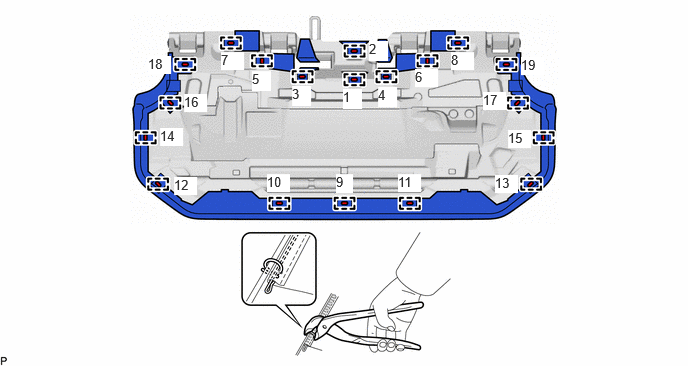

Using hog ring pliers, install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly with 19 new hog rings in the order indicated in the illustration.

B679857N01
3.573,0.927 3.771,1.135 0.198,0.208 10 true 1 3.844,0.427 4.042,0.635 0.198,0.208 10 true 2 3.042,0.896 3.24,1.104 0.198,0.208 10 true 3 3.938,0.906 4.135,1.115 0.198,0.208 10 true 4 2.625,0.74 2.823,0.948 0.198,0.208 10 true 5 4.323,0.719 4.563,0.906 0.24,0.188 10 true 6 2.302,0.542 2.542,0.729 0.24,0.188 10 true 7 4.698,0.542 4.938,0.729 0.24,0.188 10 true 8 3.5,1.813 3.677,2.01 0.177,0.198 10 true 9 4.146,1.813 4.385,2 0.24,0.188 10 true 11 2.781,1.813 3.021,2 0.24,0.188 10 true 10 1.813,1.844 2.052,2.031 0.24,0.188 10 true 12 5.156,1.823 5.396,2.01 0.24,0.188 10 true 13 1.667,1.333 1.906,1.521 0.24,0.188 10 true 14 5.292,1.354 5.531,1.542 0.24,0.188 10 true 15 1.917,0.979 2.156,1.167 0.24,0.188 10 true 16 5.031,0.958 5.271,1.146 0.24,0.188 10 true 17 1.542,0.583 1.781,0.771 0.24,0.188 10 true 18 5.427,0.594 5.667,0.781 0.24,0.188 10 true 19

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.




ii.

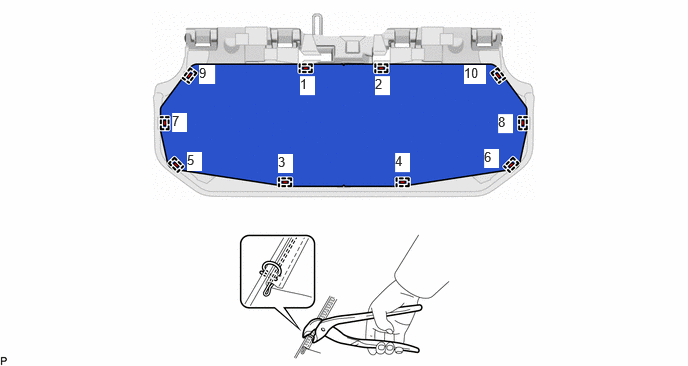

Using hog ring pliers, install the bench type rear seat cushion lower cover to the rear seat cushion pad sub-assembly with 10 new hog rings in the order indicated in the illustration.

B681463N01
3.125,0.792 3.281,0.99 0.156,0.198 10 true 1 2.073,0.677 2.24,0.875 0.167,0.198 10 true 9 4.833,0.677 5.063,0.875 0.229,0.198 10 true 10 2.896,1.604 3.052,1.802 0.156,0.198 10 true 3 4.115,1.594 4.271,1.792 0.156,0.198 10 true 4 1.792,1.177 1.948,1.375 0.156,0.198 10 true 7 5.188,1.188 5.344,1.385 0.156,0.198 10 true 8 1.948,1.583 2.104,1.781 0.156,0.198 10 true 5 5.042,1.552 5.198,1.75 0.156,0.198 10 true 6 3.906,0.792 4.063,0.99 0.156,0.198 10 true 2

NOTICE:
·

Be careful not to damage the bench type rear seat cushion cover and bench type rear seat cushion lower cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion lower cover.





Hide 3.INSTALL SEAT COVER WIRE

a.

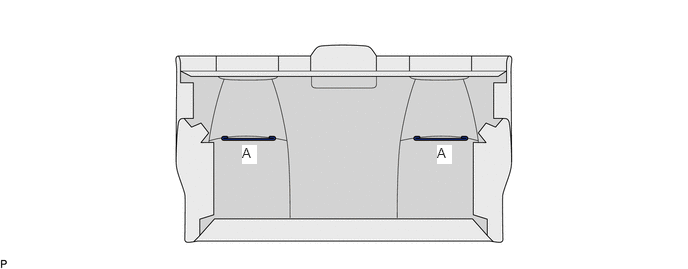

Install the 2 seat cover wires.

B552627N01
2.521,1.51 2.677,1.708 0.156,0.198 10 true A 4.552,1.51 4.708,1.708 0.156,0.198 10 true A

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wires are available as supplied parts.

·

For wires 1000 mm (3.28 ft.) or less in length, cut or shape a 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read Precaution before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION



Length:
A 210 mm (8.27 in.) - -


HINT:
B376752N01
1.698,1.438 1.99,1.729 0.292,0.292 10 false A

The dimension shown in the illustration is the length.



Hide 71077S 4.INSTALL BENCH TYPE REAR SEATBACK COVER

HINT:

When installing a bench type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION


a.

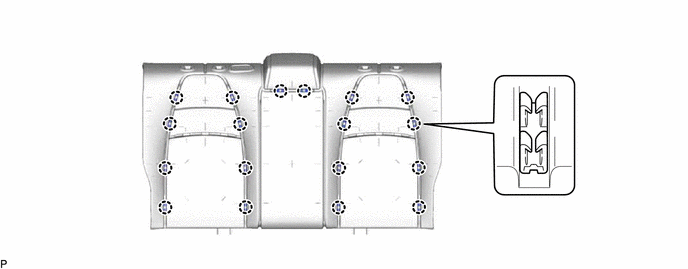

Engage the 18 claws.

B552628

NOTICE:

Be careful not to damage the bench type rear seatback cover.



b.

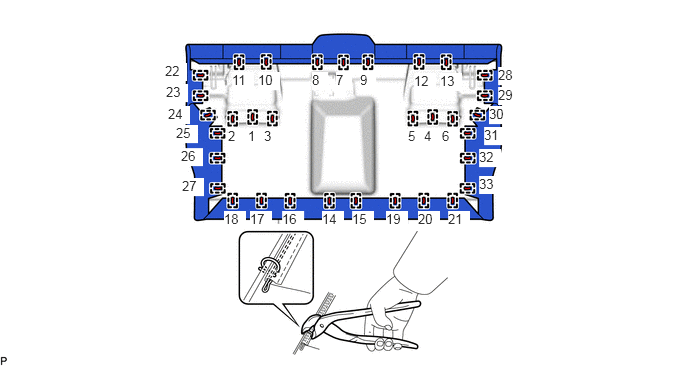

Using hog ring pliers, install the bench type rear seatback cover to the bench type rear seatback pad with 33 new hog rings in the order shown in the illustration.

B552629N01
2.583,1.333 2.75,1.521 0.167,0.188 10 true 1 2.375,1.333 2.542,1.521 0.167,0.188 10 true 2 2.75,1.333 2.917,1.521 0.167,0.188 10 true 3 4.417,1.333 4.583,1.521 0.167,0.188 10 true 4 4.25,1.333 4.417,1.521 0.167,0.188 10 true 5 4.604,1.333 4.75,1.521 0.146,0.188 10 true 6 3.5,0.75 3.667,0.938 0.167,0.188 10 true 7 3.25,0.75 3.417,0.938 0.167,0.188 10 true 8 3.75,0.75 3.917,0.938 0.167,0.188 10 true 9 2.417,0.75 2.646,0.938 0.229,0.188 10 true 11 4.313,0.76 4.542,0.948 0.229,0.188 10 true 12 4.583,0.76 4.813,0.948 0.229,0.188 10 true 13 2.688,0.75 2.917,0.938 0.229,0.188 10 true 10 3.354,2.198 3.583,2.385 0.229,0.188 10 true 14 3.667,2.198 3.896,2.385 0.229,0.188 10 true 15 2.938,2.198 3.167,2.385 0.229,0.188 10 true 16 2.604,2.198 2.833,2.385 0.229,0.188 10 true 17 1.719,0.656 1.948,0.844 0.229,0.188 10 true 22 2.333,2.198 2.563,2.385 0.229,0.188 10 true 18 1.729,0.875 1.958,1.063 0.229,0.188 10 true 23 1.75,1.104 1.979,1.292 0.229,0.188 10 true 24 1.833,1.302 2.063,1.49 0.229,0.188 10 true 25 1.885,1.542 2.115,1.729 0.229,0.188 10 true 26 1.896,1.854 2.125,2.042 0.229,0.188 10 true 27 4.021,2.198 4.25,2.385 0.229,0.188 10 true 19 4.354,2.198 4.583,2.385 0.229,0.188 10 true 20 4.667,2.198 4.896,2.385 0.229,0.188 10 true 21 5.188,0.698 5.417,0.885 0.229,0.188 10 true 28 5.188,0.906 5.417,1.094 0.229,0.188 10 true 29 5.042,1.323 5.271,1.51 0.229,0.188 10 true 31 5.094,1.104 5.323,1.292 0.229,0.188 10 true 30 4.99,1.552 5.219,1.74 0.229,0.188 10 true 32 4.99,1.833 5.219,2.021 0.229,0.188 10 true 33

NOTICE:
·

Be careful not to damage the bench type rear seatback cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seatback cover.




Hide 71931A 5.INSTALL REAR SEAT HEADREST SUPPORT

a.
B552625C01
0,0 0,0 false
V113147

Install in this Direction

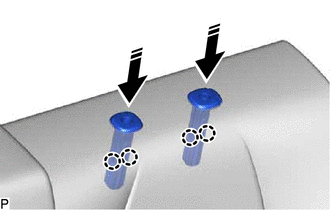

Engage the 4 claws as shown in the illustration to install the 2 rear seat headrest supports.

HINT:

Use the same procedure for the RH side and LH side.



Hide 73345 6.INSTALL REAR SEAT CENTER SHOULDER BELT GUIDE

a.
B552622

Engage the guide.


b.

Install the rear seat center shoulder belt guide with the 2 screws.
