RM3660EC _59 Vehicle Exterior _139017 ACOUSTIC VEHICLE ALERTING SYSTEM _0593816 VEHICLE APPROACHING SPEAKER A

ACOUSTIC VEHICLE ALERTING SYSTEM VEHICLE APPROACHING SPEAKER REMOVAL

PROCEDURE

Hide Display 1.REMOVE HEADLIGHT ASSEMBLY LH (for GTMC Made)

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL201906,999999,_59,_080784,_0393156,RM100000001HW4M,

Hide Display 53289A 2.REMOVE RADIATOR SUPPORT OPENING COVER (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0035,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0035,

Hide Display 86570 3.REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

a.

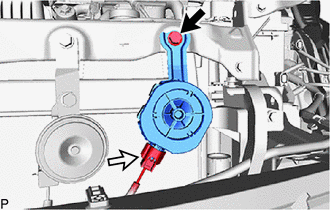

E497020

Remove the bolt.

b.

Disconnect the connector to remove the vehicle approaching speaker assembly.
