RM3660EC _53 Suspension _080780 TIRE PRESSURE MONITORING _0592791 TIRE PRESSURE WARNING SYSTEM(for Gasoline Model (for Type B)) M

TIRE PRESSURE MONITORING TIRE PRESSURE WARNING SYSTEM(for Gasoline Model (for Type B)) REGISTRATION

PROCEDURE

Hide Display 1. BEFORE REGISTRATION

NOTICE:: ·

The transmitter ID is written on the tire pressure warning valve and transmitter. It is not possible to read the transmitter ID after installing the tire onto the wheel. Therefore, make a note of the transmitter ID before installing the tire.

·

Tire pressure warning ECU and receiver ID registration after replacement must be performed using the GTS.

·

Be sure to check procedures or what work is required after replacing parts.

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type B))>PRECAUTION202304,999999,_53,_080780,_0592791,RM100000002AHTO,

When replacing tire pressure warning ECU and receiver:

Before replacing, use the GTS to read and record all of the current IDs and registered tires with transmitters (4 or 5 tires) of the tire pressure warning valve and transmitter registered to the tire pressure warning ECU and receiver.

ii.

If reading the stored transmitter IDs is impossible due to malfunctions of components such as the tire pressure warning ECU and receiver, remove the tires from the wheels and check the IDs located on the tire pressure warning valve and transmitters.

When replacing tire pressure warning valve and transmitter:

for M20E-FKS, M20A-FKS, M20C-FKS

2.104,1.542 1.417,0.583 1.417,0.583 1.25,0.583 true 0.167,0.167 0.625,0.448 0.458,0.281 12 false *1 1,0.5 1.333,0.698 0.333,0.198 10 false *a

*1	Tire Pressure Warning Valve and Transmitter
*a	Transmitter ID (7-digit Number)

except M20E-FKS, M20A-FKS, M20C-FKS

2.354,0.958 1.969,0.323 1.969,0.323 1.802,0.323 true 0.198,0.115 0.573,0.354 0.375,0.24 12 false *1 1.573,0.229 1.885,0.427 0.313,0.198 10 false *a

*1	Tire Pressure Warning Valve and Transmitter
*a	Transmitter ID (7-digit Number)

Take a note of the 7-digit number (transmitter ID) written on the tire pressure warning valve and transmitter.

Hide Display 2.REGISTER TRANSMITTER ID (USING GTS)

HINT:: If the ID registration step is not completed within 300 seconds, ID registration will be canceled.

Set the tire pressure to the specified value.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

On the GTS screen, display "ID Registration/Tire Number Registration" of Utility.

Chassis > Tire Pressure Monitor > Utility

Tester Display
ID Registration/Tire Number Registration

50005 452 4829

Perform the procedure displayed on the GTS.

HINT:: The number of tires with transmitters can be changed to 4 wheels only when the default value is set to 5 wheels. The number of tires is changed only when there is a special request from the customer. Normally, the default value for the number of tires is set.

Hide Display 3. TIRE POSITION IDENTIFICATION (USING GTS)

Set the tire pressure to the specified value.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

On the GTS screen, display the Data List.

Refer to the table below to check the tire pressure with the Data List.

Chassis > Tire Pressure Monitor > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
ID 1 Tire Inflation Pressure	ID1 tire inflation pressure	Min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) Max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm², 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/cm², 55 psi)	Actual tire inflation pressure	Not displayed, if data has not been received.*
ID 2 Tire Inflation Pressure	ID2 tire inflation pressure	Min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) Max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm², 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/cm², 55 psi)	Actual tire inflation pressure	Not displayed, if data has not been received.*
ID 3 Tire Inflation Pressure	ID3 tire inflation pressure	Min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) Max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm², 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/cm², 55 psi)	Actual tire inflation pressure	Not displayed, if data has not been received.*
ID 4 Tire Inflation Pressure	ID4 tire inflation pressure	Min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm², 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm², 0 psi) Max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm², 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/cm², 55 psi)	Actual tire inflation pressure	Not displayed, if data has not been received.*

HINT:: ·

*: It may take a few minutes until the values are displayed.

·

The wheel position cannot be determined from ID1 through ID4 on the Data List.

Chassis > Tire Pressure Monitor > Data List

Tester Display
ID 1 Tire Inflation Pressure
ID 2 Tire Inflation Pressure
ID 3 Tire Inflation Pressure
ID 4 Tire Inflation Pressure

50003 452 10,11,12,13

Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm², 5.8 psi) within 30 seconds.

NOTICE:: ·

It may take a few minutes until the values are displayed.

·

When an "ID Tire Inflation Pressure" value has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the value.

Read the "ID Tire Inflation Pressure" value and identify the tire with reduced pressure, and record the corresponding tire pressure warning valve and transmitter (ID1 to ID4).

Repeat for each tire.

Set the tire pressure to the specified value.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

On the GTS screen, display "ID Registration/Tire Position Write" of Utility.

Chassis > Tire Pressure Monitor > Utility

Tester Display
ID Registration/Tire Position Write

50005 452 2830

Perform the procedure displayed on the GTS.

Hide Display 4.REGISTER TRANSMITTER ID (USING TPWS TRIGGER TOOL)

HINT:: TPWS is an abbreviation for Tire Pressure Warning System.

Temporary registration:

Adjust the tire pressure in all tires to the specified pressure.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

ii.

0.917,1.583 1.083,1.583 1.083,1.583 1.438,1.24 true 0.24,0.219 0.552,0.375 0.313,0.156 10 false *a 0.667,1.51 0.979,1.667 0.313,0.156 10 false *b

*a	TPWS Trigger Tool (ATEQ VT30, VT36, VT55 or VT56)
*b	Read Button

Set the TPWS trigger tool to the ID reading screen.

iii.

Step "A":

Turn the engine switch on (IG).

iv.

0.604,0.25 0.917,0.448 0.313,0.198 10 false *1 0.135,3.385 0.448,3.583 0.313,0.198 10 false *a 0.135,4.01 0.448,4.208 0.313,0.198 10 false *c 2.406,3.531 2.719,3.729 0.313,0.198 10 false *e 0.146,3.792 0.458,3.99 0.313,0.198 10 false *b 1.833,4.281 2.146,4.479 0.313,0.198 10 false *d

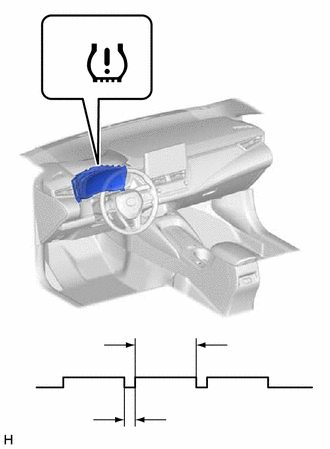

*1	Tire Pressure Warning Light
*a	Tire Pressure Warning Light Output Pattern
*b	ON (Illuminated)
*c	OFF (Not Illuminated)
*d	0.5 sec.
*e	3 sec.

Select the tire set registered by "Register New Valve / ID" on the multi-information display, and after the tire pressure warning light flashes 3 times, select "Tire Rotation" then perform the procedure (step "B") within 35 seconds.

HINT:: During registration, the tire pressure warning light blinks and the tire pressure on the multi-information display displays "---".

Step "B"

3.083,1.167 2.917,1.167 2.917,1.167 2.833,0.833 true 3.115,1.083 3.427,1.24 0.313,0.156 10 false *a

*a	Read Button

Step "B":

On the TPWS trigger tool, operate the read button at the location shown in the illustration 2 times* to read and provisionally register the ID code of the tire pressure warning valve and transmitter.

HINT:: *: Read Button Operation -> Tire Pressure Screen Display (1 time) -> Read Button Operation -> Tire Pressure Screen Display (2 times)

Sequence	Position
1	Front Tire RH

NOTICE:: Operate the TPWS trigger tool while facing and close to each tire pressure warning valve and transmitter.

HINT:: ·

During the registration procedure, the tire pressure warning light will blink continuously at 0.25 second intervals.

·

If registration fails, the tire pressure warning light blinks and the tire pressure display in the multi-information display becomes "- - -", so perform the procedure from Step "A" again.

·

When the temporary registration of each tire is completed, the hazard lights flash 2 times.

·

If the hazard lights do not flash 2 times, the tire pressure warning valve and transmitter ID of a different vehicle was mistakenly registered, or the electrical waves were not received. Change location, turn the engine switch from off → on (IG), and perform the operation again.

vi.

Step "C"

3.167,2.75 3.052,2.75 3.052,2.75 2.99,2.5 true 3.208,2.677 3.427,2.833 0.219,0.156 10 false *a

*a	Read Button

Step "C":

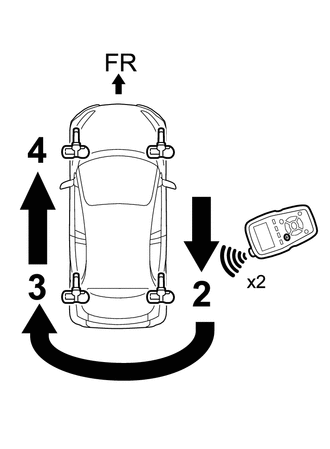

On the TPWS trigger tool, operate the read button at the location shown in the illustration 2 times* to read and provisionally register the ID code of the tire pressure warning valve and transmitter.

HINT:: *: Read Button Operation -> Tire Pressure Screen Display (1 time) -> Read Button Operation -> Tire Pressure Screen Display (2 times)

Sequence	Position
2	Rear Tire RH
3	Rear Tire LH
4	Front Tire LH

NOTICE:: ·

Temporary registration will not be completed if the operation is performed in the incorrect order.

·

Operate the TPWS trigger tool while facing and close to each tire pressure warning valve and transmitter.

HINT:: ·

During the registration procedure, the tire pressure warning light will blink continuously at 0.25 second intervals.

·

If registration fails, the tire pressure warning light blinks and the tire pressure display in the multi-information display becomes "- - -", so perform the procedure from Step "A" again.

·

When the temporary registration of each tire is completed, the hazard lights flash 2 times.

·

Perform the operations from Step "B" to Step "C" within 60 seconds.

·

If the hazard lights do not flash 2 times, the tire pressure warning valve and transmitter ID of a different vehicle was mistakenly registered, or the electrical waves were not received. Change location, turn the engine switch from off → on (IG), and perform the operation again.

vii.

Check that the tire pressure is "0" on the multi-information display.

HINT:: If the tire pressure is not "0", the temporary registration is not completed. Perform the procedure again from Step "A".

Main registration and tire position registration:

Step "D"

3.167,1.167 3,1.167 3,1.167 2.844,0.802 true 3.198,1.083 3.406,1.229 0.208,0.146 10 false *a

*a	Read Button

Step "D":

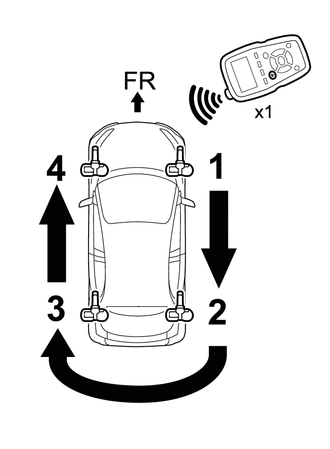

Following the sequence shown, on the TPWS trigger tool, operate the read button 1 time* at each location shown in the illustration to read and perform final registration for each tire pressure warning valve and transmitter ID and register the wheel position.

HINT:: *: Read Button Operation -> Tire Pressure Screen Display (1 time)

Sequence	Position
1	Front Tire RH
2	Rear Tire RH
3	Rear Tire LH
4	Front Tire LH

NOTICE:: ·

If the order is incorrect, it will not be possible to complete final registration.

·

Operate the TPWS trigger tool while facing and close to each tire pressure warning valve and transmitter.

HINT:: ·

During the registration procedure, the tire pressure warning light will blink continuously at 0.25 second intervals.

·

If registration fails, the tire pressure warning light blinks and the tire pressure display in the multi-information display becomes "- - -", so perform the procedure from Step "A" again.

·

When the temporary registration of each tire is completed, the hazard lights flash 2 times.

·

Perform the operations in Step "D" within 60 seconds.

·

If the hazard lights do not flash 2 times, the tire pressure warning valve and transmitter ID of a different vehicle was mistakenly registered, or the electrical waves were not received. Change location, turn the engine switch from off → on (IG), and perform the operation again.

ii.

Check that the tire pressure is displayed on the multi-information display.

Rapidly decrease the tire pressure of each wheel to 40 kPa (0.4 kgf/cm², 5.8 psi) or more within 30 seconds, and then check the tire pressure value on the multi-information display.

HINT:: ·

It may take a few minutes until the values are displayed.

·

If the tire pressure data does not change, rotate the tire from 90° to 270°, and check it again.

Repeat for each tire.

Adjust the tire pressure in all tires to the specified pressure.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

Hide Display 5. TIRE POSITION IDENTIFICATION (USING TPWS TRIGGER TOOL)

HINT:: TPWS is an abbreviation for Tire Pressure Warning System.

Read tire pressure warning valve and transmitter ID codes and register wheel positions:

Adjust the tire pressure in all tires to the specified pressure.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

ii.

0.917,1.583 1.083,1.583 1.083,1.583 1.438,1.24 true 0.24,0.219 0.552,0.375 0.313,0.156 10 false *a 0.667,1.51 0.979,1.667 0.313,0.156 10 false *b

*a	TPWS Trigger Tool (ATEQ VT30, VT36, VT55 or VT56)
*b	Read Button

Set the TPWS trigger tool to the ID reading screen.

iii.

Turn the engine switch on (IG).

iv.

Select "Tire Rotation" on the multi-information display.

HINT:: During registration, the tire pressure on the multi-information display displays "---".

Step "A"

3.167,1.167 3,1.167 3,1.167 2.865,0.813 true 3.167,1.083 3.417,1.25 0.25,0.167 10 false *a

*a	Read Button

Step "A":

Following the sequence shown, on the TPWS trigger tool, operate the read button 1 time* at each location shown in the illustration to read each tire pressure warning valve and transmitter ID and register the wheel position.

HINT:: *: Read Button Operation -> Tire Pressure Screen Display (1 time)

Sequence	Position
1	Front Tire RH
2	Rear Tire RH
3	Rear Tire LH
4	Front Tire LH

NOTICE:: ·

If the order is incorrect, registration will complete with incorrect positions. (Not registered to the correct positions)

·

Operate the TPWS trigger tool while facing and close to each tire pressure warning valve and transmitter.

HINT:: ·

When the wheel position registration of each tire is completed, the hazard lights flash 2 times.

·

Perform the operations in Step "A" within 60 seconds.

·

If the hazard lights do not flash 2 times, the tire pressure warning valve and transmitter ID of a different vehicle was mistakenly registered, or the electrical waves were not received. Change location, turn the engine switch from off → on (IG), and perform the operation again.

vi.

Check that the tire pressure is displayed on the multi-information display.

Rapidly decrease the tire pressure of each wheel to 40 kPa (0.4 kgf/cm², 5.8 psi) or more within 30 seconds, and then check the tire pressure value on the multi-information display.

HINT:: ·

It may take a few minutes until the values are displayed.

·

If the tire pressure data does not change, rotate the tire from 90° to 270°, and check it again.

Repeat for each tire.

Adjust the tire pressure in all tires to the specified pressure.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

Hide Display 6.REGISTER TRANSMITTER ID (USING AUTOMATIC ID REGISTRATION FUNCTION)

NOTICE:: ·

If the transmitter IDs have not been registered, Vehicle Control History (RoB) X20FA is stored in the tire pressure warning ECU and receiver after 3 minutes or more.

·

If normal pressure values are displayed, the transmitter IDs have been registered correctly.

·

If another tire pressure warning valve and transmitter belonging to the same system is installed to a tire other than the one transmitter registration is being performed on, automatic ID registration does not complete.

HINT:: ·

If the ECU Data List is displayed using the GTS while work is being performed, the registration mode will be canceled.

·

During the registration process, by selecting the tire set using "Register New Valve / ID" using the multi-information display, registration mode can be canceled.

·

If the engine switch is turned off before driving during the registration procedure, registration mode will continue.

Adjust the tire pressure in all tires to the specified pressure.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

Turn the engine switch off and stop the vehicle for 15 minutes or more.

HINT:: After stopping the vehicle for 15 minutes or more, the frequency of electrical wave signals sent by the tire pressure warning valve and transmitters increases for the first few minutes of driving (8 times the normal frequency).

Operate the multi-information display and using "Register New Valve / ID", select a tire set to register, and check that the tire pressure warning light blinks 3 times.

HINT:: During registration, the tire pressure warning light blinks, the multi-information display tire pressure displays as "---" and "Tire Pressure Recalibrating Please Wait until Complete" is displayed.

Drive at approximately 40 km/h (25 mph) for approximately 10 to 30 minutes during 1 trip.

During the procedure, make 2 or more right or left turns.

HINT:: Do not drive the vehicle in reverse during registration.; If the vehicle is driven in reverse during registration, the information may be reset before registration completes, and registration may take longer than normal to complete.

When registration is completed, the tire pressure warning light turns off, and a registration completed message is displayed on the multi-information display.

HINT:: ·

Registration may take longer than normal in the following driving environments.

-

Vehicle is often stopped

-

Vehicle is stopped for long period of time

-

Vehicle is driven in reverse

-

Vehicle is driven parallel to another vehicle with the same type of tire pressure warning valve and transmitter installed for a long duration of time

-

Vehicle was not stopped for 15 minutes or more before registration

-

Vehicle was driven at 40 km/h (25 mph) or less for a long duration of time

-

The engine switch is turned from on (IG) to off during ID registration

Hide Display 7. TIRE POSITION IDENTIFICATION (NOT USING GTS)

Set the tire pressure to the specified value.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202304,999999,_53,_080781,_0392688,RM100000002B8QX,

Select "Tire Rotation" on the multi-information display, then drive the vehicle at 40 km/h (25 mph) or more for 10 to 30 minutes in 1 trip until each tire position is automatically identified.

HINT:: ·

When tire position identification is being performed, the tire pressure on the multi-information display is displayed as "---".

·

Do not drive the vehicle in reverse gear while performing Tire Position Identification. If the vehicle is driven in reverse gear while performing Tire Position Identification, identification information will be discarded and Tire Position Identification may take longer than usual.

·

When the vehicle is driven under the following conditions, Tire Position Identification may take longer than usual.

-

The vehicle is stopped frequently.

-

The vehicle is stopped for a long period of time.

-

The vehicle is driven in reverse gear.

-

The vehicle is driven on rough roads or uneven surfaces.

Hide Display 8.METHOD TO SWITCH ID

NOTICE:: ·

If there is a malfunction in the tire pressure warning system, perform troubleshooting before switching IDs.

·

To use the ID switching function, a tire and wheel set for which the IDs have already been registered is needed.

Install the tire and wheel set for which the IDs have already been registered.

Turn the engine switch on (IG).

*1	Tire Pressure Warning Light
*a	Tire Pressure Warning Light Output Pattern
*b	ON (Illuminated)
*c	OFF (Not Illuminated)
*d	0.5 sec.
*e	3 sec.

Operate the multi-information display and using "Register Valve / ID", select a tire set to register, and check that the tire pressure warning light blinks 3 times.

HINT:: When the switch ID procedure is being performed, the tire pressure warning light blinks and the tire pressure on the multi-information display is displayed as "---".

Stop the vehicle and wait for 2 minutes.

NOTICE:: Do not drive the vehicle during the ID switching procedure. Driving the vehicle will cause it to change to the automatic ID registration mode.

After ID switching completes, the tire pressure warning light turns off.

Perform tire position identification.

Identification using GTS: Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type B))>REGISTRATION202304,999999,_53,_080780,_0592791,RM100000002AHU7_01_0005,

Identification by driving vehicle: Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type B))>REGISTRATION202304,999999,_53,_080780,_0592791,RM100000002AHU7_01_0004,

Identification using TPWS trigger tool: Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type B))>REGISTRATION202304,999999,_53,_080780,_0592791,RM100000002AHU7_01_0008,

HINT:: ·

When wheel position identification is completed, a registration completed message is displayed on the multi-information display.

·

TPWS is an abbreviation for Tire Pressure Warning System.
