HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Gasoline Model (NR Series) with Manual Air Conditioning System for Electrical Control Type)  B14BD  Refrigerant Overabundance Filling Malfunction

This DTC is stored if the amount of refrigerant in the in the air conditioning system exceeds a threshold. The air conditioning amplifier assembly judges whether the amount of refrigerant is appropriate based on the detected refrigerant pressure and the compressor assembly with pulley operation current. If the amount of refrigerant in the system is determined to have exceeded a threshold, operation of the compressor assembly with pulley will be stopped, and will remain stopped even if the ignition switch is turned off and then the engine is restarted.

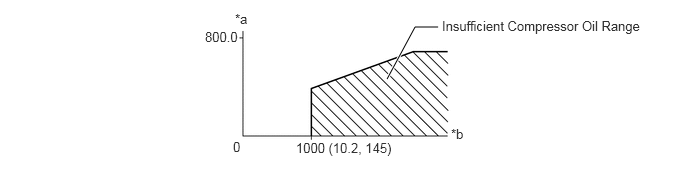

4.031,0.823 4.323,0.281 4.323,0.281 4.563,0.281 true 2.135,0.302 2.542,0.479 0.406,0.177 10 false 800.0 3.083,1.458 4.188,1.667 1.104,0.208 10 false 1000 (10.2, 145) 4.698,1.313 4.948,1.5 0.25,0.188 10 false *b 2.448,0.115 2.677,0.313 0.229,0.198 10 false *a 4.604,0.188 6.844,0.385 2.24,0.198 10 false Insufficient Compressor Oil Range 2.427,1.448 2.583,1.646 0.156,0.198 10 false 0

*a

Electric Current (mA)

*b

Refrigerant Pressure kPa (kgf/cm2, psi)
