ADVANCED DRIVER ASSISTANCE SYSTEM  CAMERA HEATER(for NR Series Engine)  INSTALLATION

0,0 0,0 false

	Heater Area
	Install in this Direction (1)
	Install in this Direction (2)

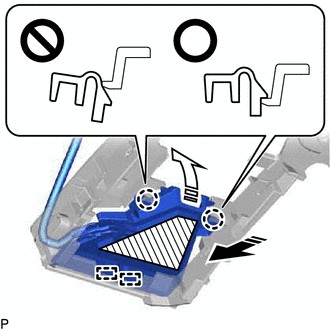

Engage the 2 guides and 2 claws as indicated by the arrows in the order shown in the illustration.

NOTICE:

·

Make sure that the 2 claws are engaged as shown in the illustration. Failure to do so may result in the malfunction of systems that use the forward recognition camera.

·

Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

0.563,1.354 0.323,0.885 0.323,0.885 0.677,1.24 false 1.292,0.385 1.833,0.677 false 0.333,0.885 0.823,1.125 false 1.073,0.281 1.281,0.469 0.208,0.188 10 true *a 0.115,0.792 0.323,0.979 0.208,0.188 10 true *b 0.99,1.115 1.135,1.292 0.146,0.177 10 true 3 0.344,1.333 0.49,1.51 0.146,0.177 10 true 1 2.031,0.604 2.188,0.792 0.156,0.188 10 true 4 0.792,1.219 0.938,1.396 0.146,0.177 10 true 2

*a	Clamp
*b	Rib

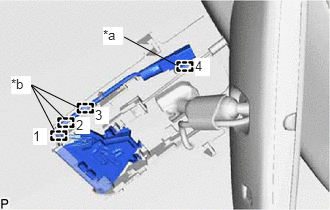

Engage the clamp and 3 ribs to install the forward recognition with heater hood sub-assembly.

NOTICE:

·

As the No. 1 forward recognition cover cannot be installed correctly if the clamp and ribs are not engaged securely, make sure to engage each clamp and rib securely.

·

Do not forcibly pull the wire harness as it may become damaged.

HINT:

Engage the clamp and ribs in the order shown in the illustration.
